Use the Provisioning Tool
926
WebEML User Manual

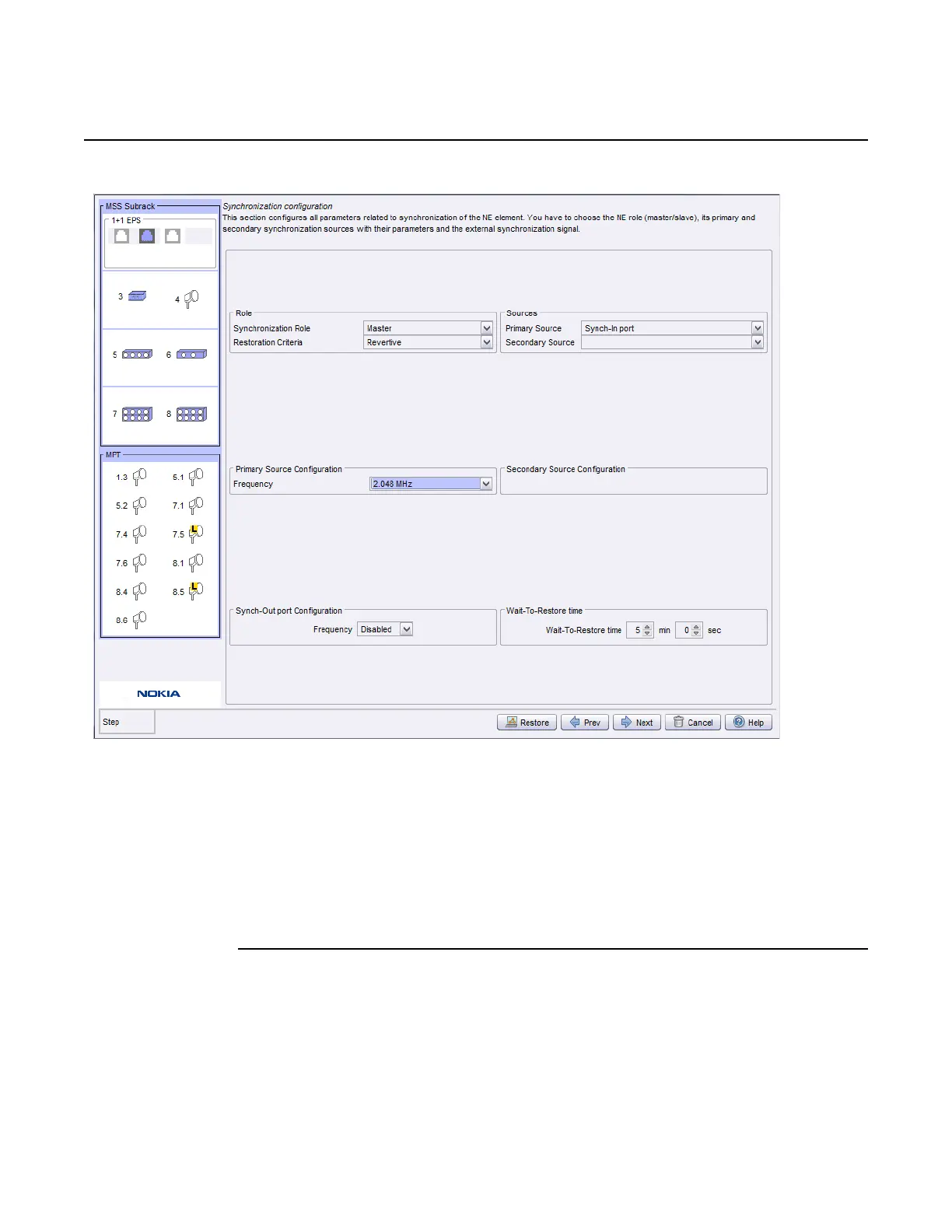

Figure 696 Synchronization Configuration screen
Perform the following:
i. Select the primary or secondary source from the Sources drop-down
menus; for example, Any available DS1. The list of sources in the drop-
down menu is pre-defined: it does not change based on the configuration.
ii. Choose the interface in the Source Configuration drop-down menus. The
list of interfaces in the drop-down menu is created based on the interfaces
configured. For example, if Any available DS1 has been selected, the menu
displays the configured DS1 ports.
2. Configure a dedicated Sync-Out port configurable according to the following
options:
− 2.048 MHz, electrical levels according G.703, clause 13
− 5 MHz, + 6 dBm into 50 ohm, sine-wave
− 10 MHz, + 6 dBm into 50 ohm, sine-wave
Release 7.0.0 3DB 19286 ACAA Issue 01
To Next Page
