Nokia 9500 MPR - Figure 618 MPT-HLC Transceiver Protection Criteria Provisioning

Configure radio parameters
820
WebEML User Manual
47. Provision Spare MPT-HLC radio channel ATPC:
i. Select the ATPC Enabled check box.
ii. Enter the Min-Max transmit power value range (dBm).
iii. Enter the Remote ATPC Rx Threshold (-90.0 / -20.0 dBm).
iv. Click Apply.
48. Provision the MPT-HLC radio protection scheme
Open the appropriate radio main view depending on your radio configuration
and select Protection Schemes tab; see Figure 618.

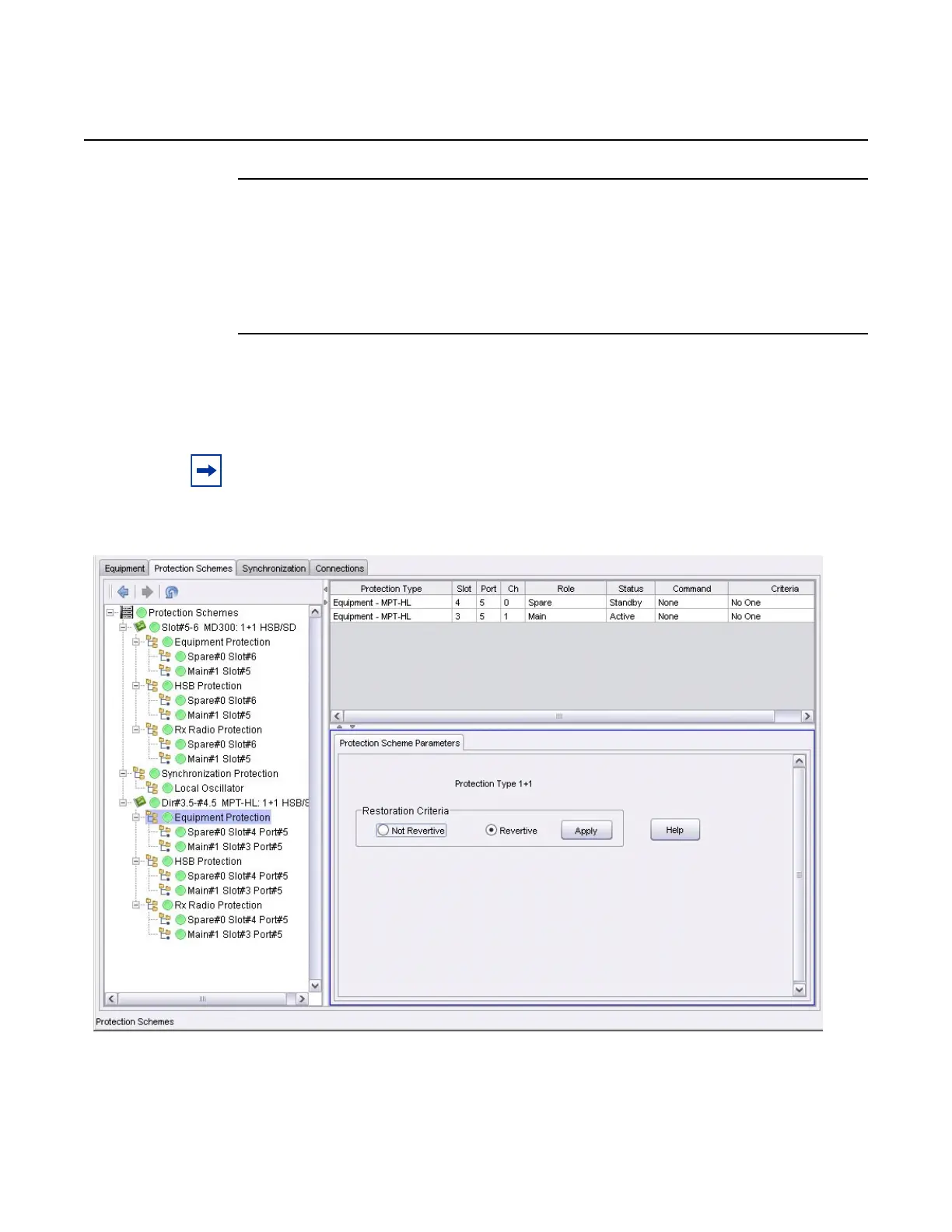

Figure 618 MPT-HLC transceiver protection criteria provisioning
Note: Revertive restoration criteria is the default value.
Release 7.0.0 3DB 19286 ACAA Issue 01
