WebEML User Manual Enable equipment

501

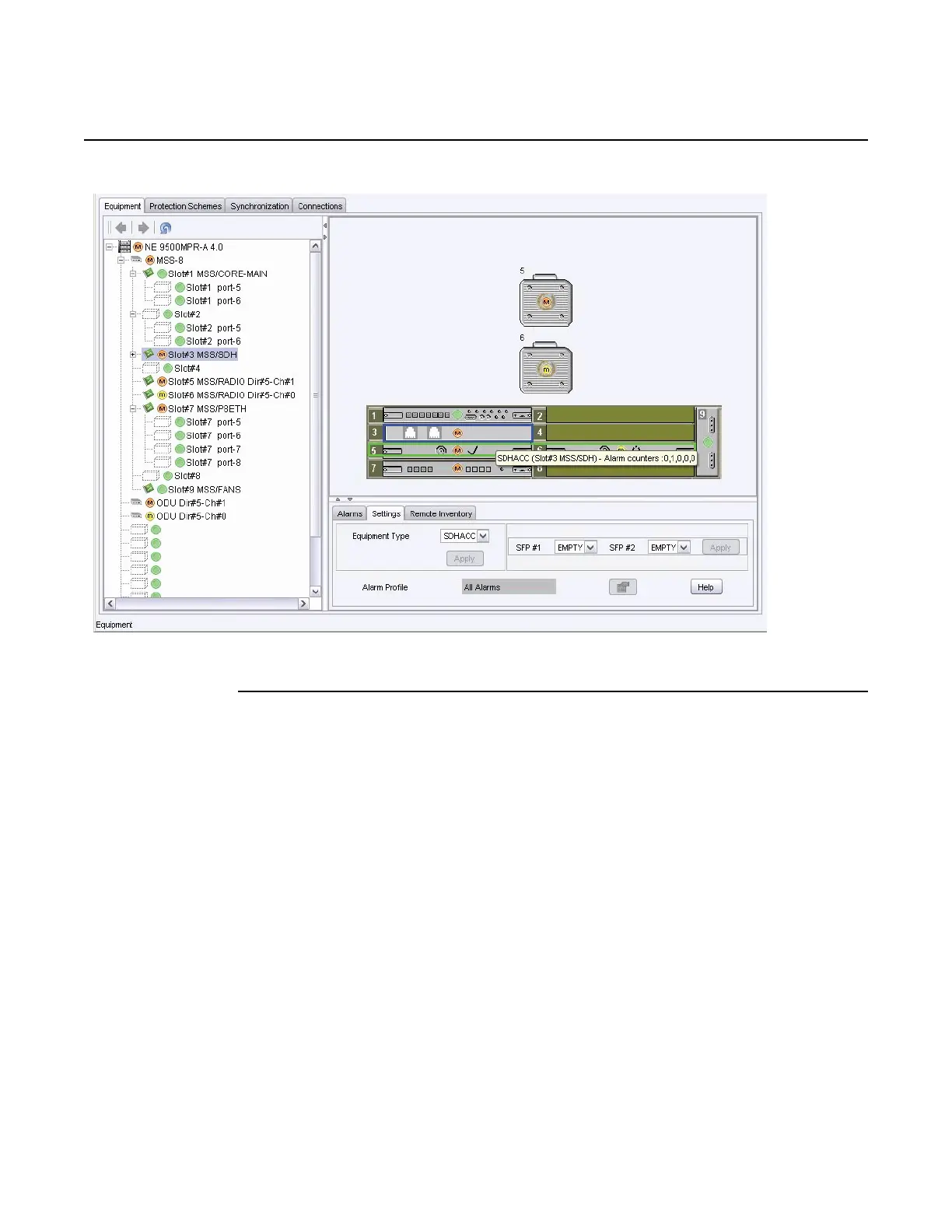

Figure 317 SDHACC enabled

To enable an MPT access card

1. Select MSS-n/Slot# (slot 3 through 8) in the resource tree area where the MPT

Access card will be enabled. The selected slot will highlight in blue. This

selection also highlights the selected slot in blue on the graphical representation

of the MSS shelf in the resource list area. See Figure 318.

Release 7.0.0 3DB 19286 ACAA Issue 01
