Nokia 9500 MPR - Figure 662 Ipv6 Pre-Provisioning Setting Step 2 of 3 Window

WebEML User Manual Perform IPv6 pre-provisioning
885
5. In the TMN In-Band #1 Configuration panel, enter the IPv6 address of the TMN
In-Band #1 port in the IPv6 Address field, and the prefix length in the Prefix
Length field.
6. In the TMN In-Band #2 Configuration panel, enter the IPv6 address of the TMN
In-Band #2 port in the IPv6 Address field, and the prefix length in the Prefix
Length field.
7. In the Port#4 TMN Ethernet Configuration panel, enter the IPv6 address of the
Port#4 TMN port in the IPv6 Address field, and the prefix length in the Prefix
Length field.

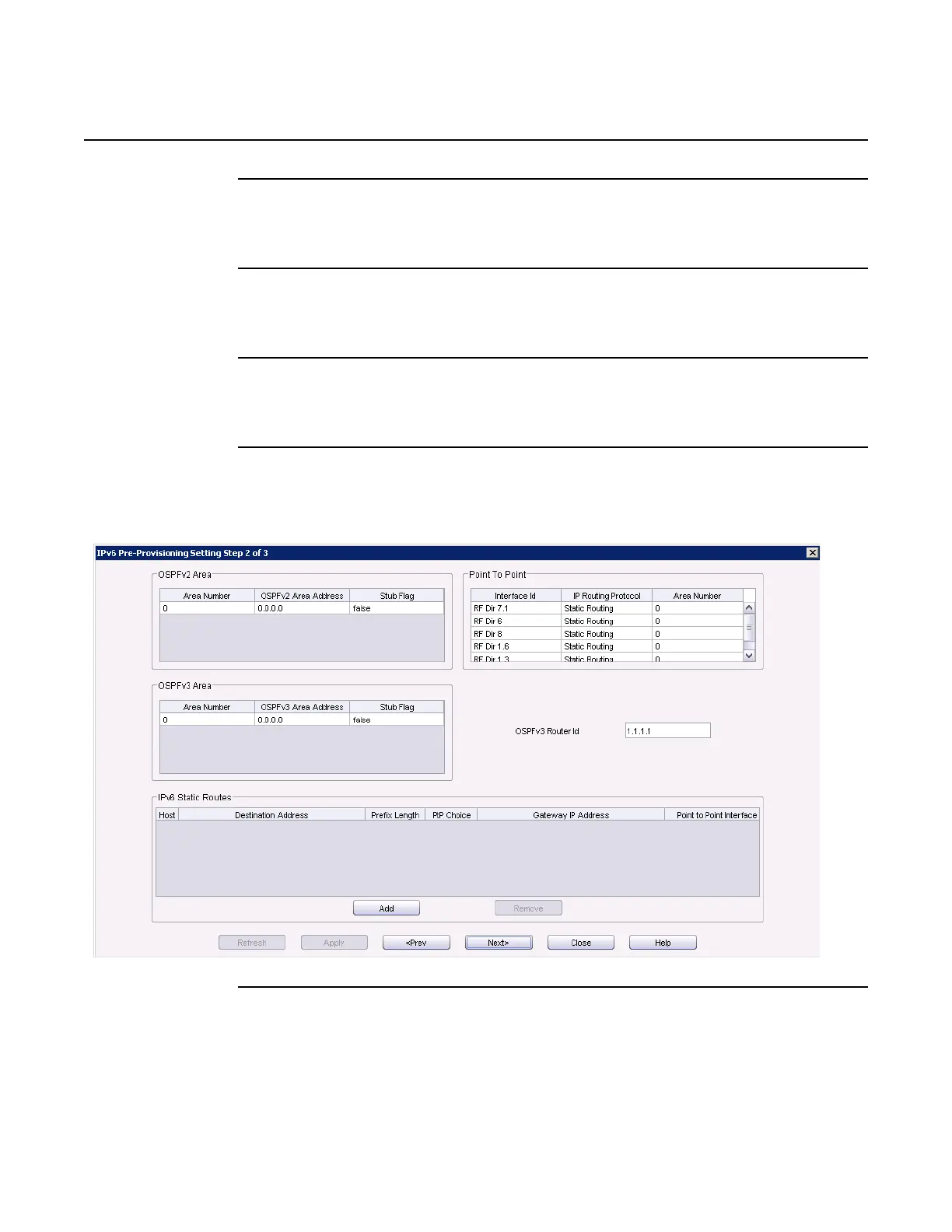

8. Click Next. The second IPv6 Pre-Provisioning Setting window opens. See
Figure 662.
Figure 662 IPv6 Pre-Provisioning Setting Step 2 of 3 window
9. Click on the Add button. The Create IPv6 Static Route window opens.
See Figure 663.
