Configure radio parameters
826
WebEML User Manual

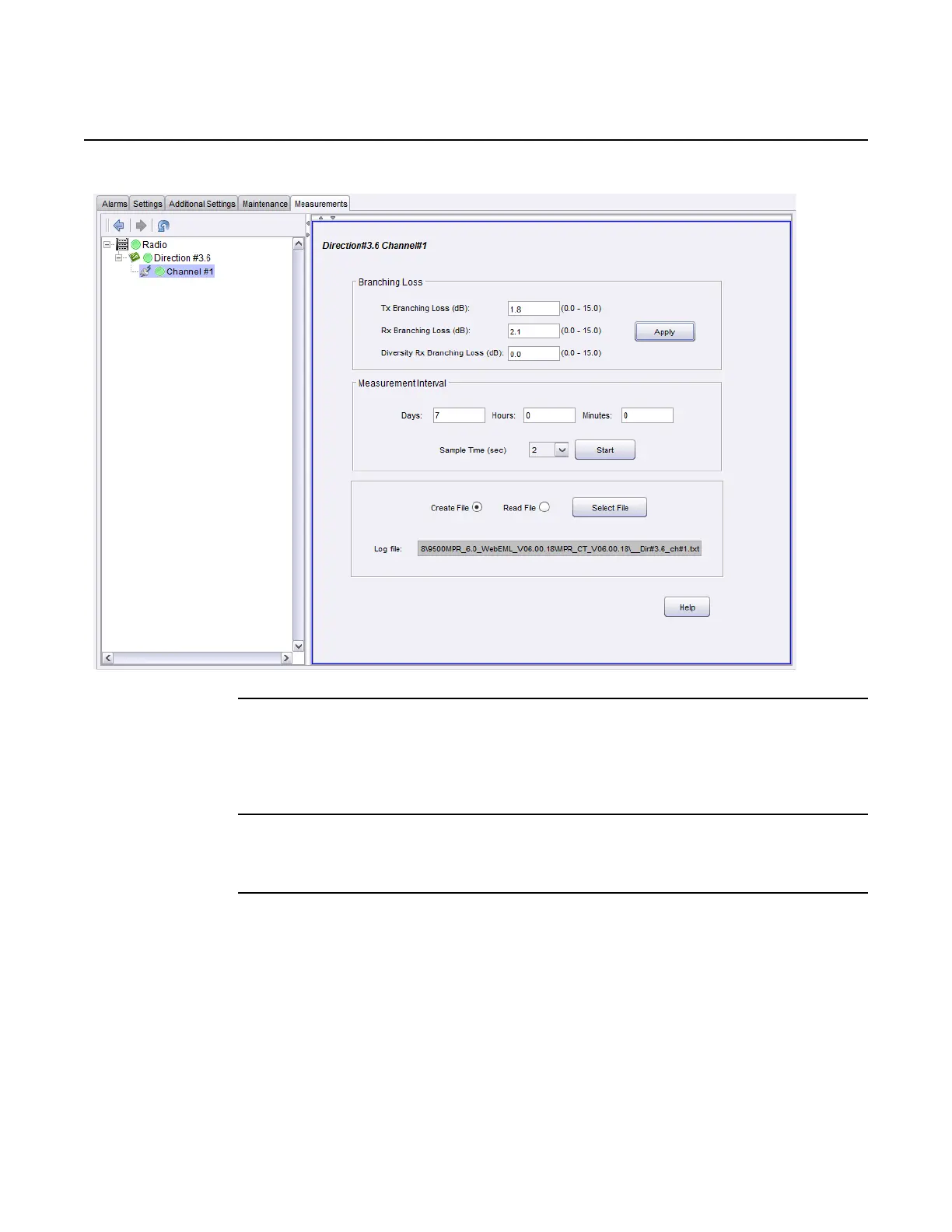

Figure 621 Measurements tab for MPT-HLC
72. Enter the measured Tx and Rx Branching Loss values. The Diversity Rx
Branching Loss can also be configured if the diversity combiner is in use.
If measured values are not available, see the 9500 MPR-A MPT-HL Engineering
Specifications for information.
73. Click Apply.
To administer the MPT-HLS transceiver
1. Select an action.
a. To Provision the MPT-HLS co-channel XPIC configuration, go to step 2.
b. To Provision the MPT-HLS 1+1 XPIC configuration, go to step 13.
c. To Provision the MPT-HLS radio protection type, go to step 24.
d. To Provision the MPT-HLS radio for fixed modulation, go to step 29.
e. To Provision the MPT-HLS radio for adaptive modulation, go to step 32.
f. To Provision the MPT-HLS 1+1 spare radio channel, go to step 35.
Release 7.0.0 3DB 19286 ACAA Issue 01
