Nokia 9500 MPR - Figure 719 SDH Main View, Loopback Tab OC-3 Port#3.1 Selected

WebEML User Manual Core Facing PDH/SDH Tributary Loopback
957

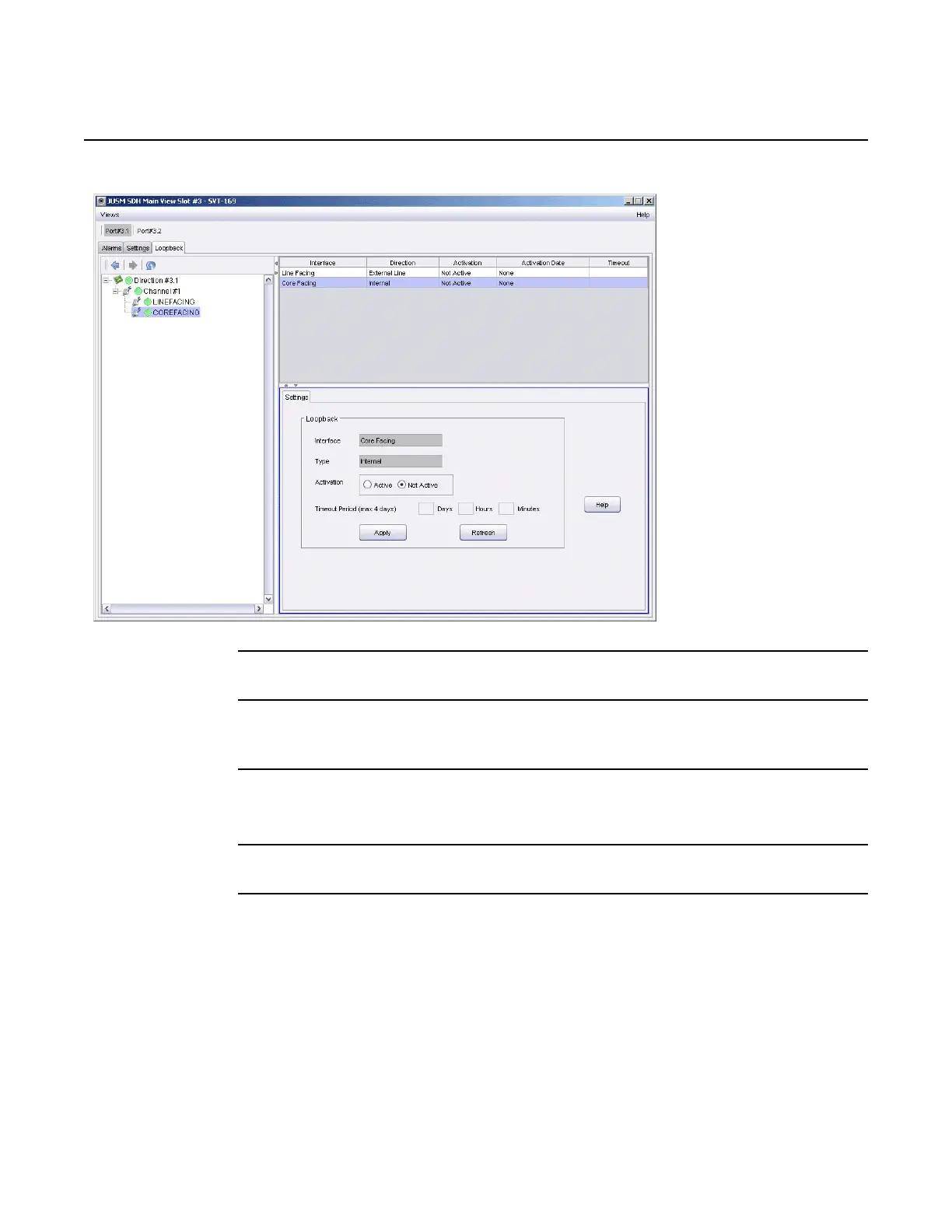

Figure 719 SDH main view, Loopback tab OC-3 Port#3.1 selected
6. Select the Active radio button in the Activation area.
7. Enter time out period (days, hours, minutes) in the Timeout Period (max 4
days) fields.
8. Click Apply.
Loopback Setting window opens.
9. Click Yes.
10. Core Facing PDH/SDH Tributary Loopback is established (Active). For an
example of an active DS1 core facing loopback see Figure 720. For an example
of an active SDH core facing loopback see Figure 721.
