Nokia 9500 MPR - PDH to Radio; Prerequisites; Figure 192 MSS-1 Cross-Connections Screen

WebEML User Manual Provision cross connections
349

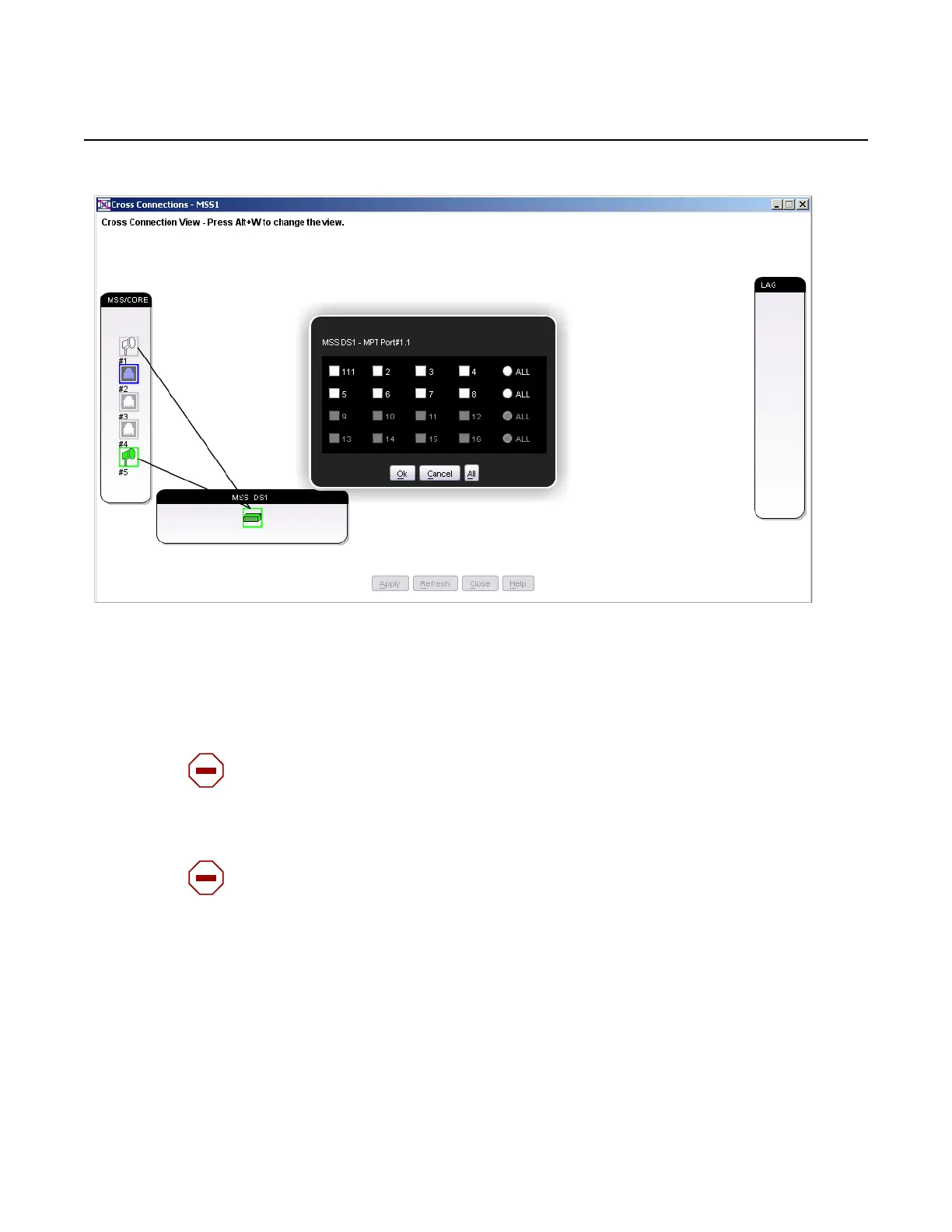

Figure 192 MSS-1 Cross-Connections screen
43.3 PDH to radio:
43.3.1 Prerequisites
Each E1/DS1/DS3 port and radio port must be enabled on the respective E1/DS1/
DS3 card and Core/MPTACC/P8ETH/EASv2 card or Radio LAG port provisioning
screens.
Caution: In the protected Core configuration, entering E1/DS1 cross-connections while the
spare Core is Active may affect existing E1/DS1 cross-connections. To prevent this from
occurring, ONLY provision E1/DS1 cross-connections while the main Core card is Active.
Caution: When parallel radio paths exist between two MSS shelves, port segregation
should be provisioned between the parallel radio paths at both ends to prevent a loss of
traffic.
Release 7.0.0 3DB 19286 ACAA Issue 01
