Nokia 9500 MPR - Figure 201 SDH-RADIO Cross Connection

WebEML User Manual Provision cross connections
367

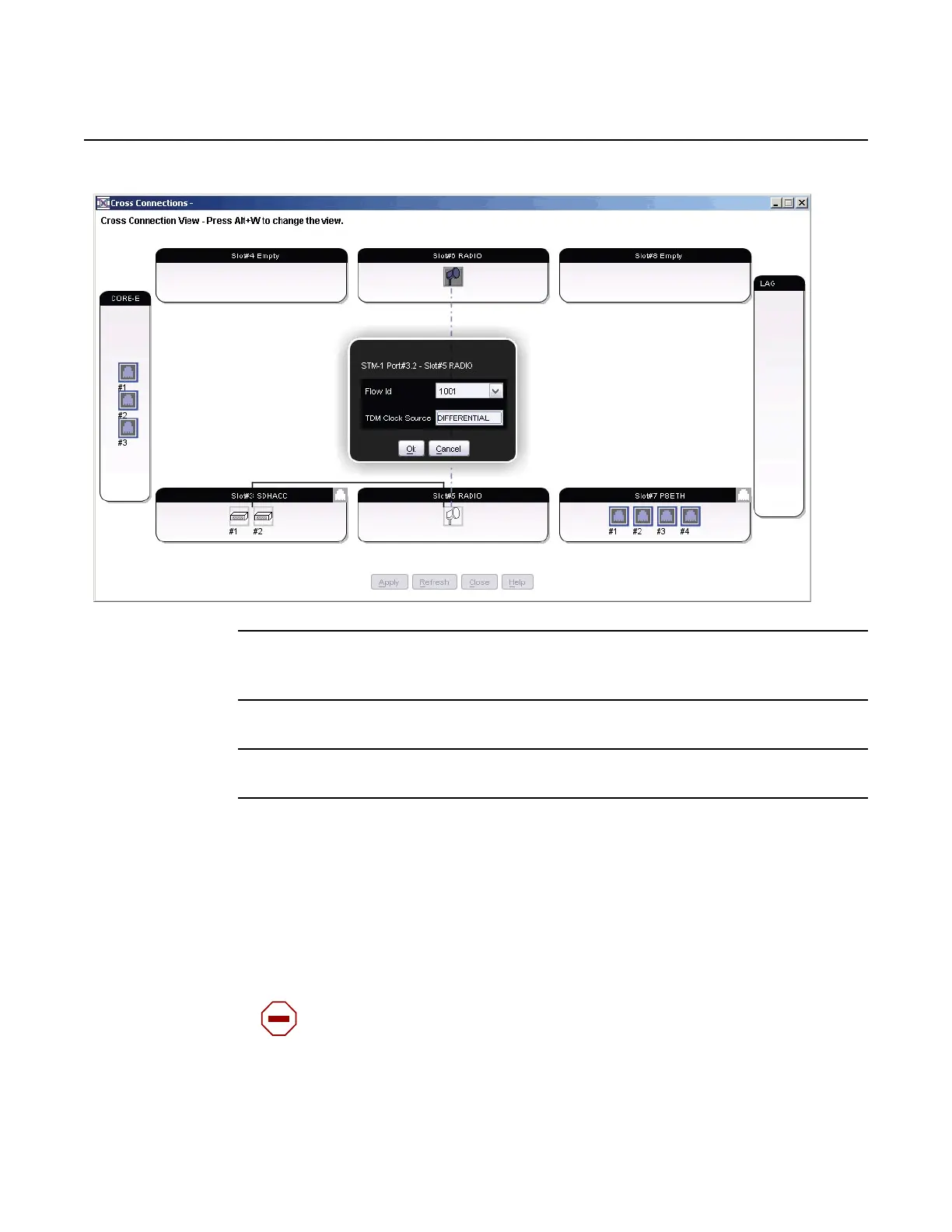

Figure 201 SDH-RADIO Cross Connection
3. On the STM-1(OC-3)_RADIO pop-up, verify the Flow ID number to be cross
connected.
4. On the STM-1(OC-3)_RADIO pop-up, click OK.
5. On the Cross Connection screen, click Apply.
6. From the Connections tab, verify the SDH_RADIO cross-connection was
entered correctly.
To provision an SDH to Ring Cross connection
Caution: When parallel radio paths exist between two MSS shelves, port
segregation should be provisioned between the parallel radio paths at both ends
to prevent a loss of traffic.
Release 7.0.0 3DB 19286 ACAA Issue 01
