Nokia 9500 MPR - Figure 599 MPT-HL Settings Tab for Adaptive Modulation

Configure radio parameters
794
WebEML User Manual

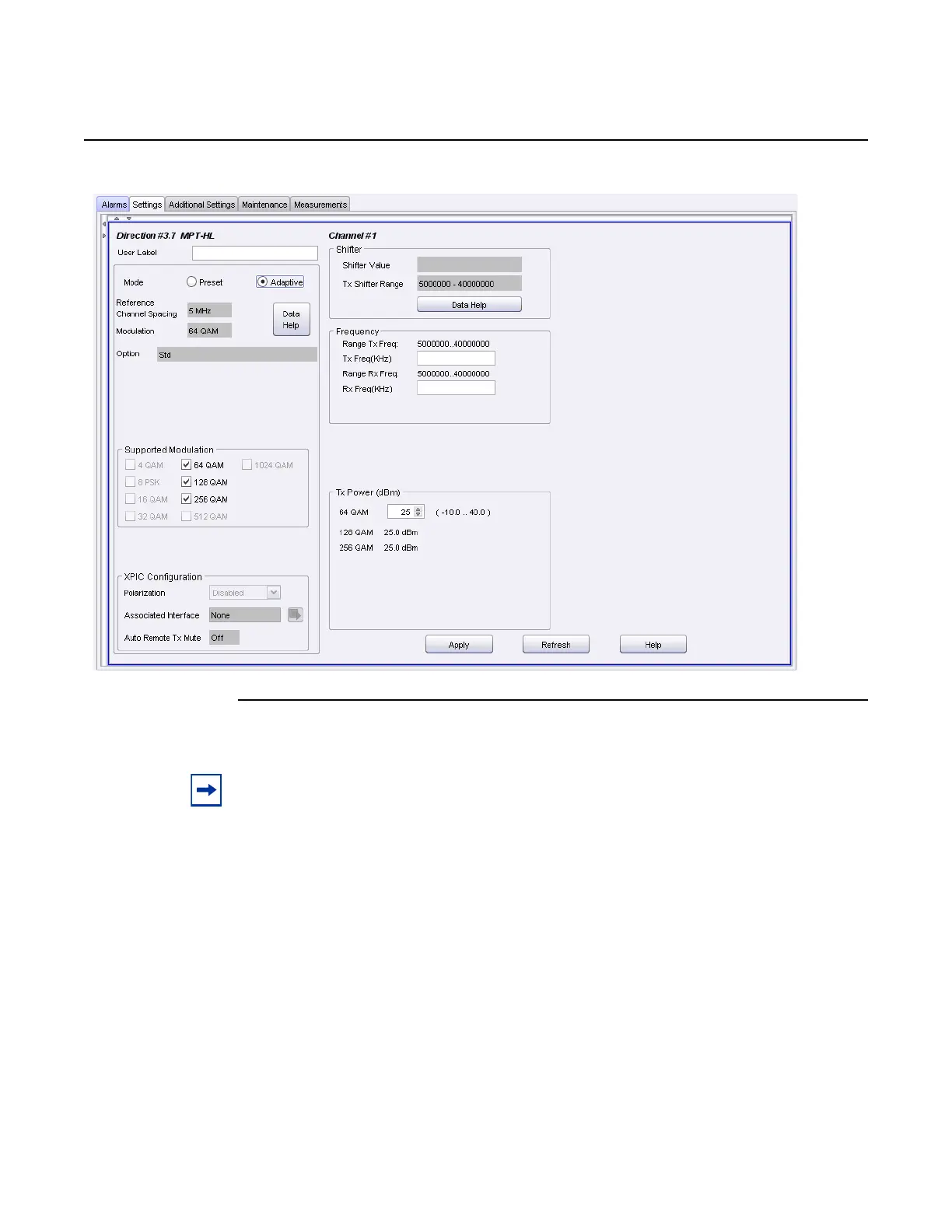

Figure 599 MPT-HL Settings tab for adaptive modulation
10. Provision MPT-HL radio port:
i. In the Mode field, select the Adaptive radio button.
ii. Click on the Data Help button under the Mode field. The Data Help window
opens.
iii. In the Data Help window, double-click on the table row for the desired
reference modulation scheme (4 QAM, 16 QAM, 32 QAM, 64 QAM, 128
QAM, or 256 QAM), and option (Std or High Gain). The reference
modulation will be the lowest available modulation scheme in the supported
modulation range.
iv. In 1+1 HSB configurations, from the Driving MSE drop-down menu, choose
Lowest or Highest MSE.
Note: Depending on the modem profile selected, the Tx power may become out of range.
If this occurs, provision the Tx power to the desired level or to one supported by the modem
profile to clear the warning message.
