Nokia 9500 MPR - Figure 685 Easv2 Protection Configuration

Use the Provisioning Tool
916
WebEML User Manual

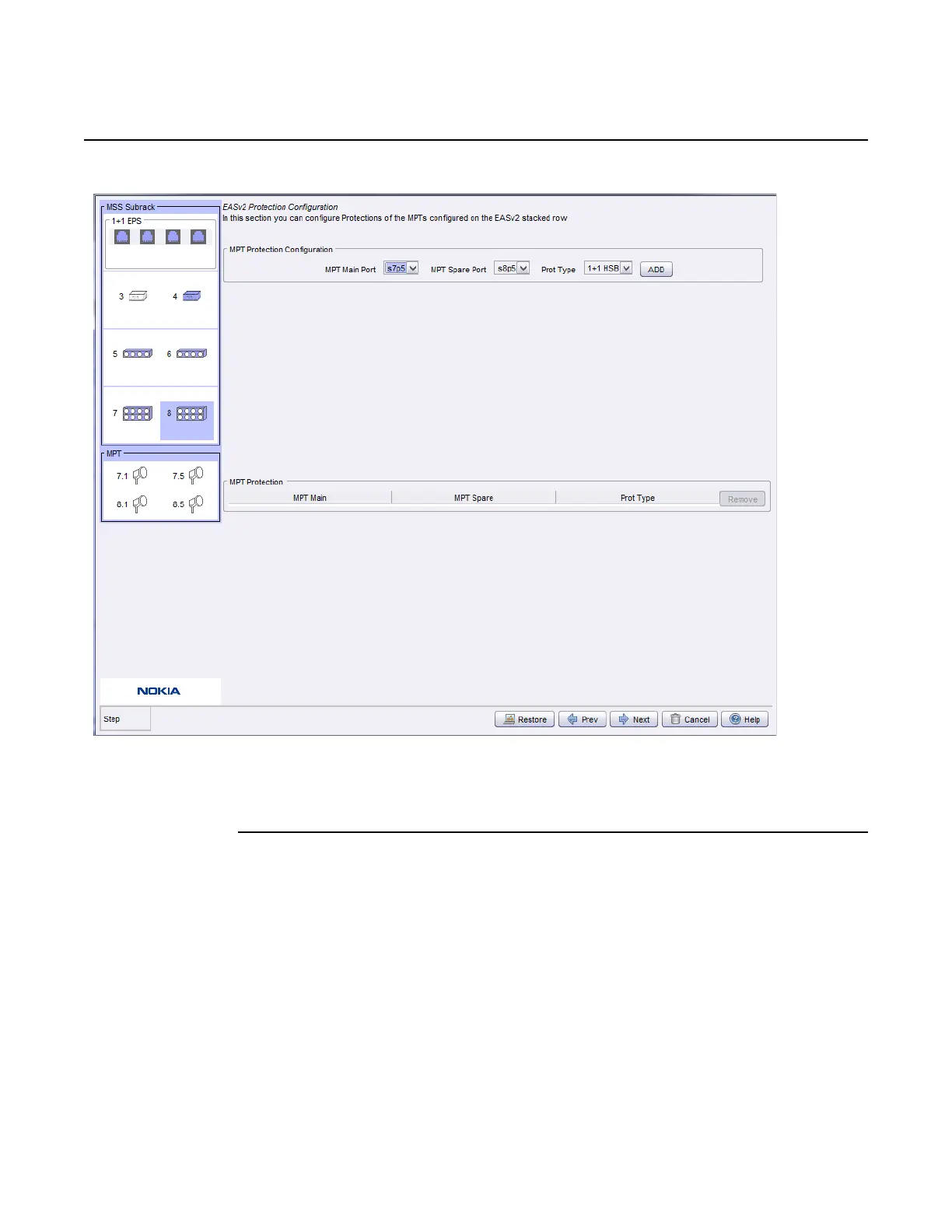

Figure 685 EASv2 protection configuration
In the MPT Protection Configuration area select the MPT Main port and the MPT
Spare port (in the example figure s7p5 means Slot #7 Port #5) and in the Prot
Type field select the protection configuration: 1+1 HSB or 1+1 FD.
4. After the selection click on ADD to set up the protection; see Figure 686.
Release 7.0.0 3DB 19286 ACAA Issue 01
