Nokia 9500 MPR - Figure 210 Ethernet to Ring Cross Connection

WebEML User Manual Provision cross connections
379
ports and other Ethernet and/or radio ports where connectivity is not desirable.
See Provision port segregation/connectivity for detailed steps to view/provision
port segregation.
2. Select ETH port and drag to draw line to Ring port.
ETH-RING pop-up displays. See Figure 210.

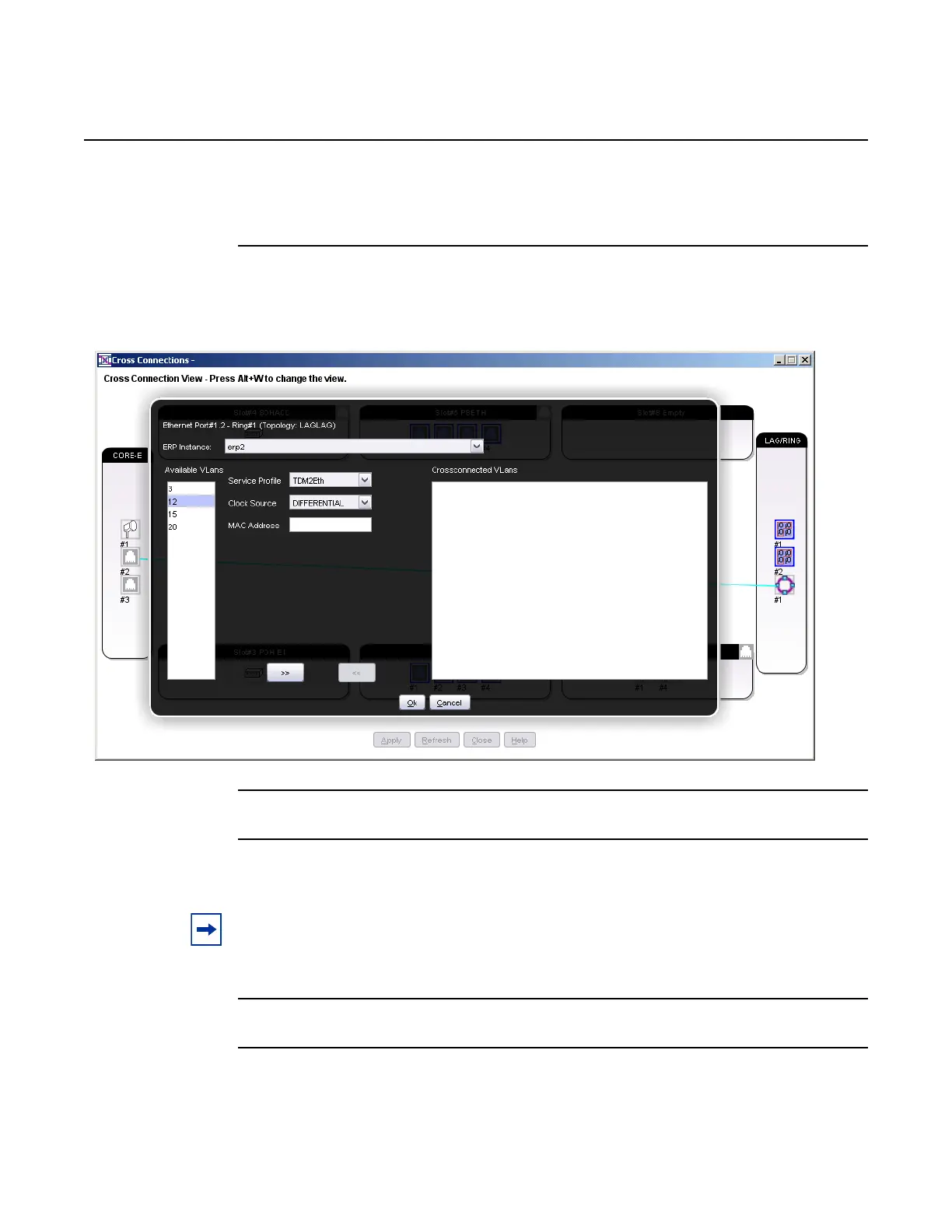

Figure 210 Ethernet to Ring Cross Connection
3. On the ETH-RING pop-up, select ERP Instance to be cross connected.
4. On the ETH-RING pop-up, select VLAN ID number in the Available VLANs field.
5. From the Service Profile drop-down menu, select TDM2ETH.
6. From the Clock Source drop-down menu, select ADAPTIVE or DIFFERENTIAL.
Note: Ranging is supported for ETH-RING cross-connection entry.
