Nokia 9500 MPR - Figure 454 Node I to NE E (Protected): Pass-Through Cross-Connection on Node D

Provision cross connections in a mixed fiber/
microwave Ring
644
WebEML User Manual

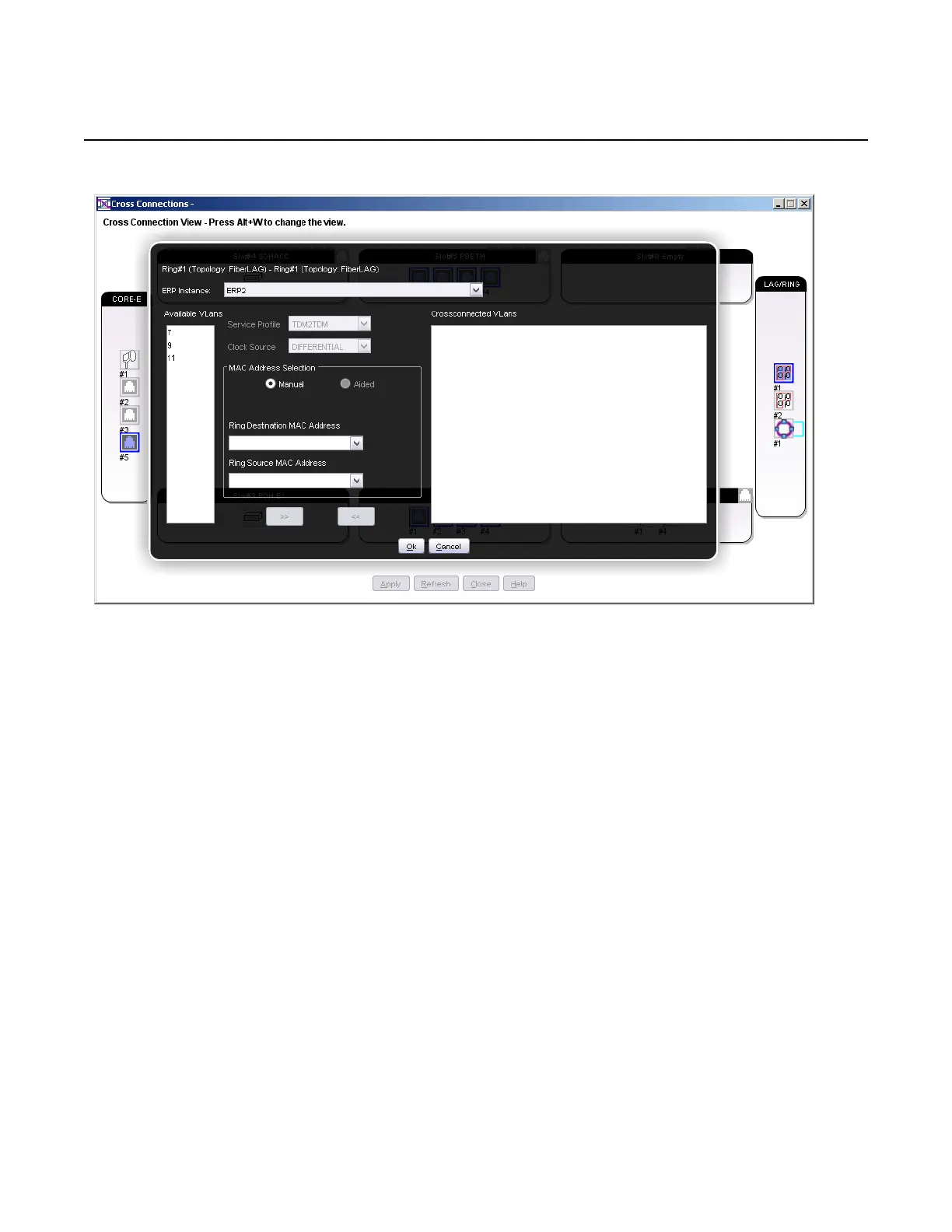

Figure 454 Node I to NE E (protected): pass-through cross-connection on Node D
a. Choose the flow IDs to cross-connect from the Available VLANs list
b. Choose the Service profile: TDM2TDM or TDM2ETH
c. Choose the Clock Source, if the Service profile is TDM2ETH
d. Enter the Ring Destination MAC address: NE E Multicast MAC address
e. Enter the Ring Source MAC address: Node D Unicast MAC address
To provision a cross-connection between Node A and Node D
• Both traffic end points belong to the fiber chain; see Figure 455.
