Enable equipment
498
WebEML User Manual

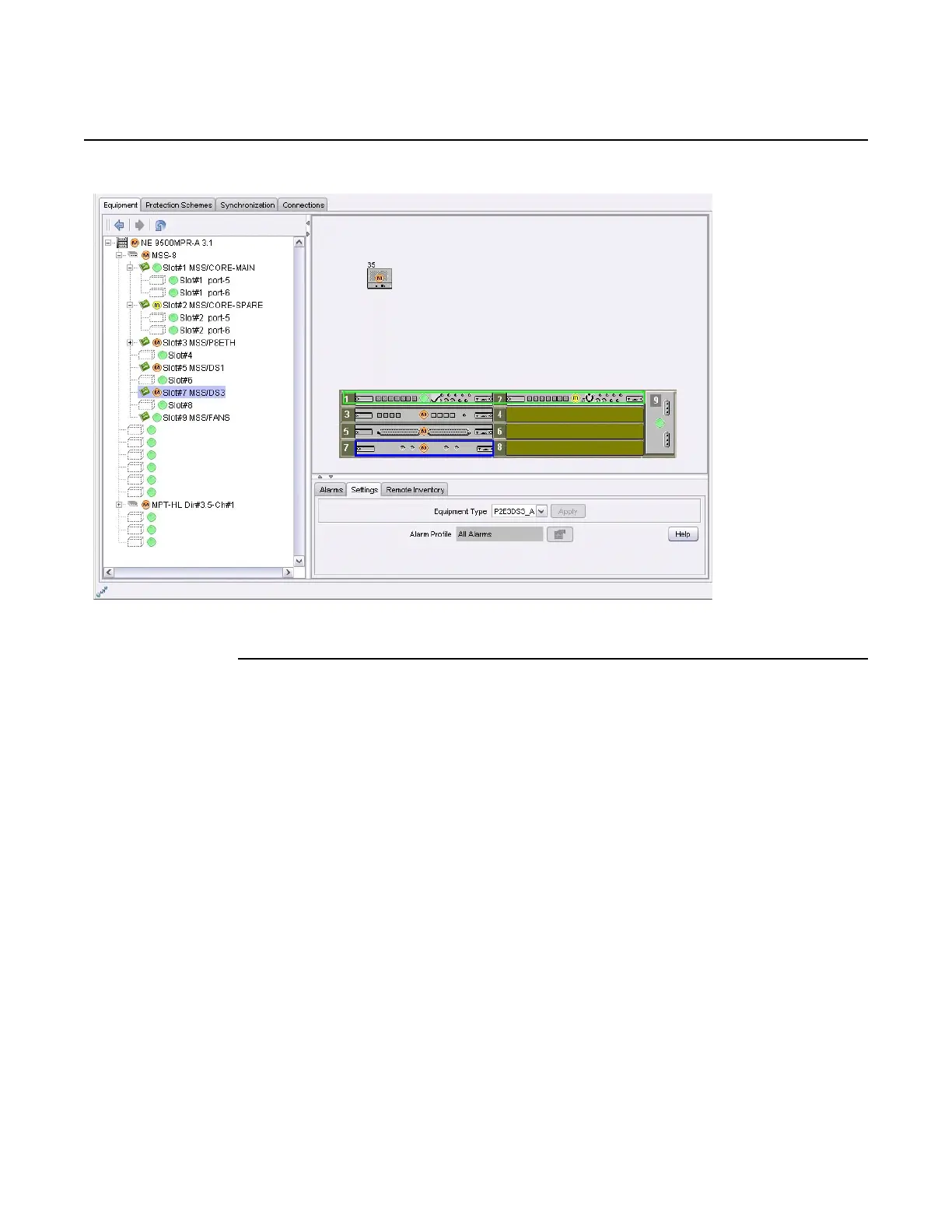

Figure 314 P2E3DS3 enabled
To enable an SDH card
1. Select MSS-n/Slot# (slot 3 through 8) in the resource tree area where the
SDHACC or SDHCHANN card will be enabled. The selected slot will highlight in
blue. This selection also highlights the selected slot in blue on the graphical
representation of the MSS shelf in the resource list area. See Figure 315.
Release 7.0.0 3DB 19286 ACAA Issue 01
