Nokia 9500 MPR - Figure 494 Node B to Node C: PDH-Ring Cross-Connection on Node C

To Next Page

To Previous Page

WebEML User Manual Provision cross connections in a mixed fiber/

microwave Ring

679

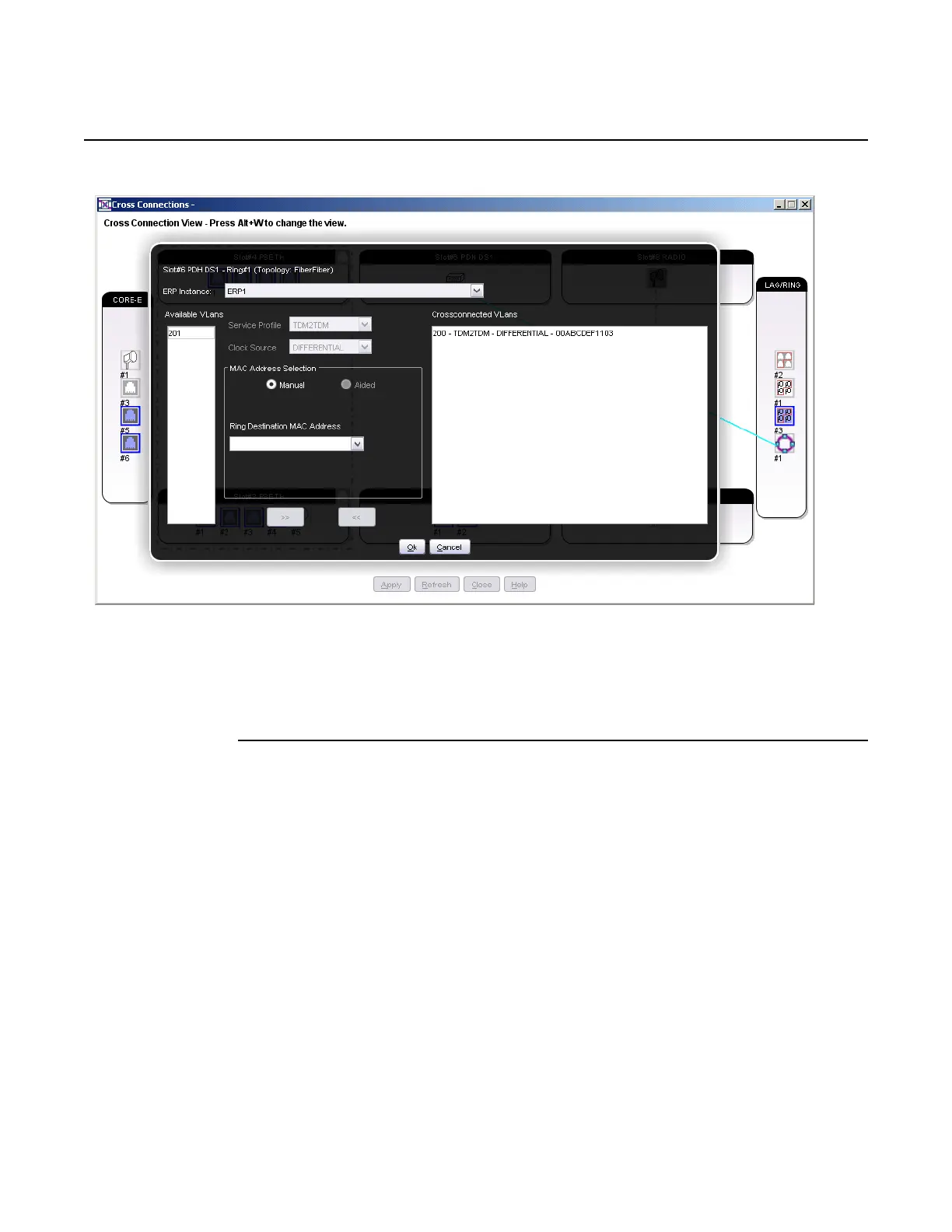

Figure 494 Node B to Node C: PDH-Ring cross-connection on Node C

a. Choose the flow IDs to cross-connect from the Available VLANs list

b. Choose the Service profile: TDM2TDM or TDM2ETH

c. Choose the Clock Source, if the Service profile is TDM2ETH

d. Enter the Ring Destination MAC address: Node B Unicast MAC address

4. Configure a pass-through cross-connection on Node A, see Figure 495.

Release 7.0.0 3DB 19286 ACAA Issue 01
