Configure radio parameters
874
WebEML User Manual

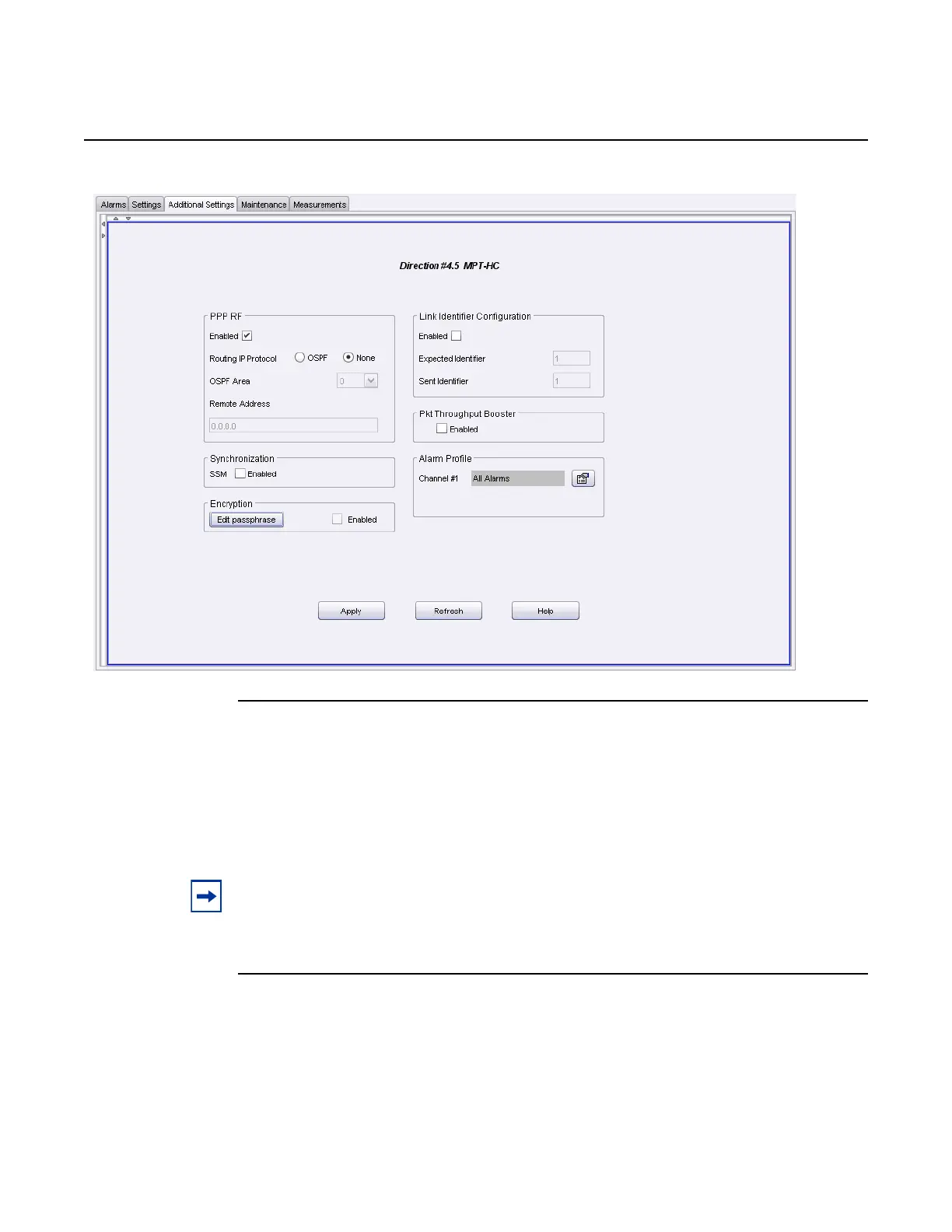

Figure 656 MPT-HC Additional Settings tab
67. Provision MPT ODU radio link identifier:
i. Select the Link Identifier Configuration Enabled check box.
ii. Enter the Expected Identifier value (0 to 255).
iii. Enter the Sent Identifier value (0 to 255).
iv. Click Apply.
68. Provision the MPT ODU Synchronization Status Messaging
i. Select the Synchronization SSM Enabled check box see Figure 603.
ii. Click Apply.
Note: If the MPT ODU is part of a LAG, you cannot change the SSM or PPP settings on an
individual radio. Go to Administer L1/L2 radio and L2 Ethernet LAG ports to administer LAG
ports.
Release 7.0.0 3DB 19286 ACAA Issue 01
