WebEML User Manual Disable equipment

531

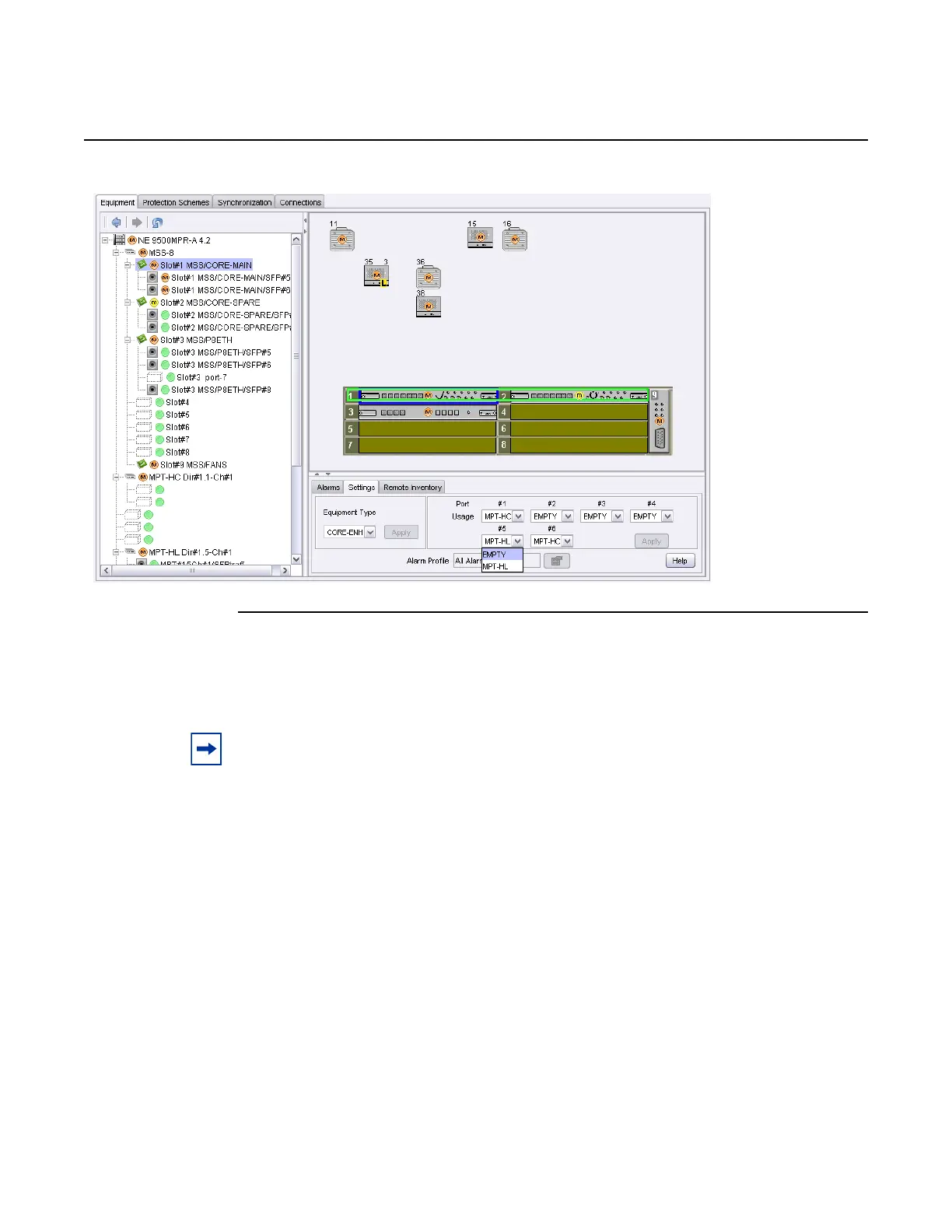

Figure 345 Disable MPT-HL or MPT-HLC transceiver

4. Click Apply.

The Core port # will display Empty and the MPT-HL/MPT-HLC will be removed

from the resource list area. See Figure 346.

Note: MPT-HL/MPT-HLC Transceiver card will not disable if the port has any

cross-connections associated with the card.

Release 7.0.0 3DB 19286 ACAA Issue 01
