Provision cross connections in a mixed fiber/
microwave Ring
726
WebEML User Manual

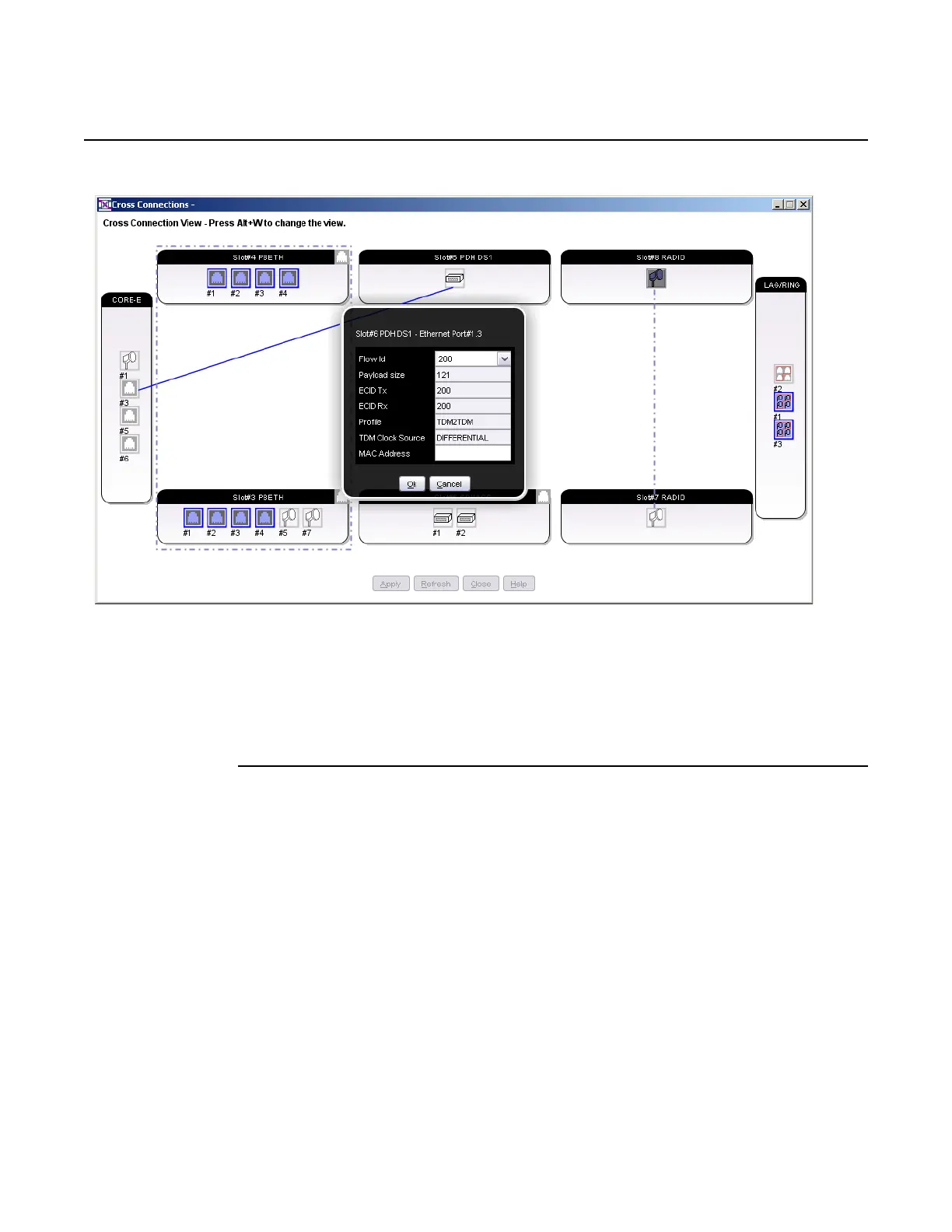

Figure 541 NE E to NE H: Ethernet-PDH cross-connection on NE E
e. Choose the flow ID from the Flow Id drop-down
f. Configure the payload size, ECID Tx, and ECID Rx parameters
g. Choose the Service profile: TDM2TDM or TDM2ETH
h. Choose the TDM clock source, if the Service profile is TDM2ETH
i. Enter the MAC address: NE H Unicast MAC address
3. Configure an Ethernet-Radio or Ethernet-PDH cross-connection on NE H, see
Figure 542 and Figure 543.
