Nokia 9500 MPR - Figure 306 Resource List Area: Core-E Selected

To Next Page

To Previous Page

Enable equipment

490

WebEML User Manual

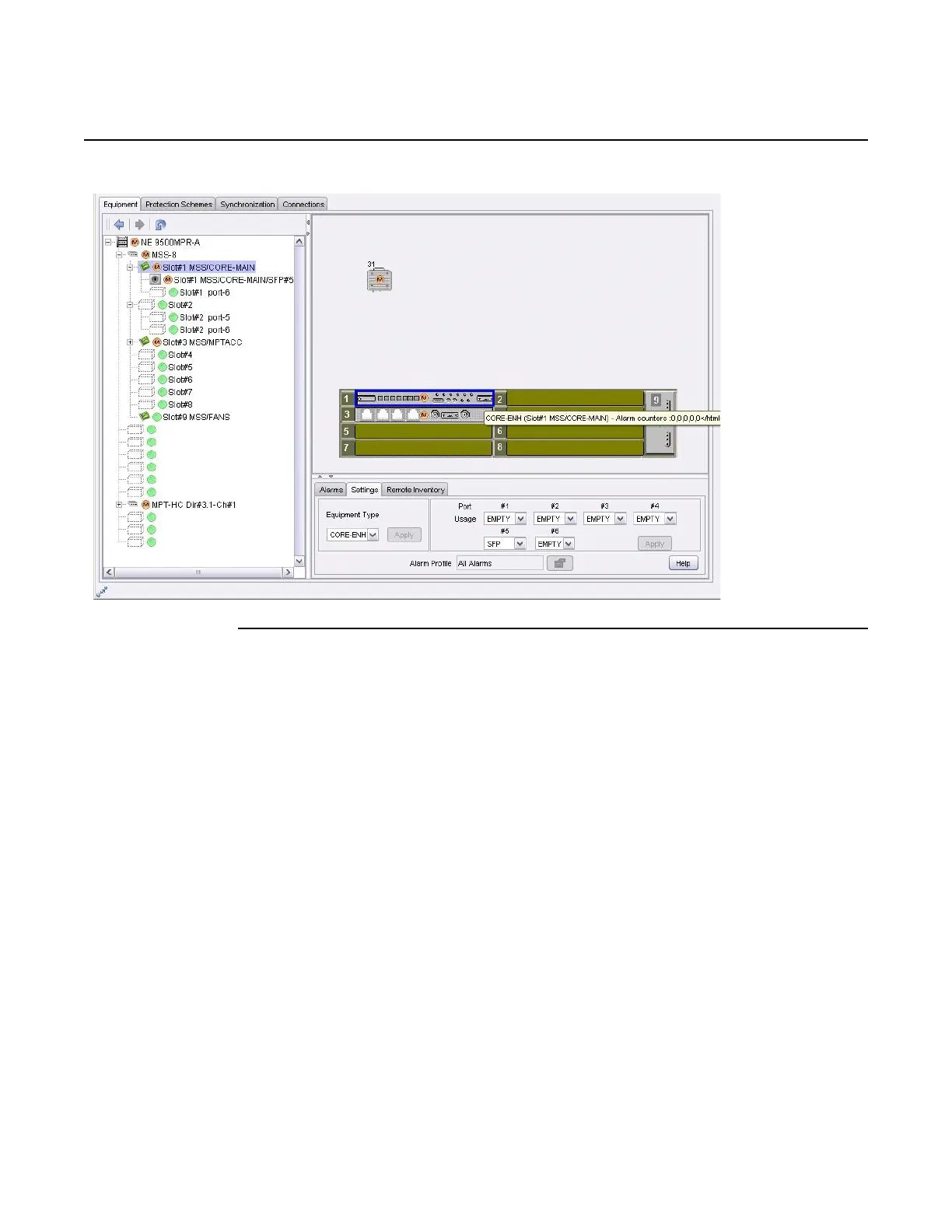

Figure 306 Resource list area: Core-E selected

3. From the Port # (5-6) Usage drop-down menu, select port usage type MPT-HL/

MPT-HLC. See Figure 307.

Release 7.0.0 3DB 19286 ACAA Issue 01
