Nokia 9500 MPR - Figure 32 External Alarm Inputs Provisioned

WebEML User Manual Administer external alarm points on an Auxiliary
card
113
5. Select CPI#[1-6] in the resource tree area.
6. Select CPI#[1-6] in the resource tree area.
7. In the User Label field, enter the alarm input label.
8. Select the External inputs Polarity radio button, Active Low or Active High.
9. Click Apply.
The External Points Resource List Table updates. See Figure 32.

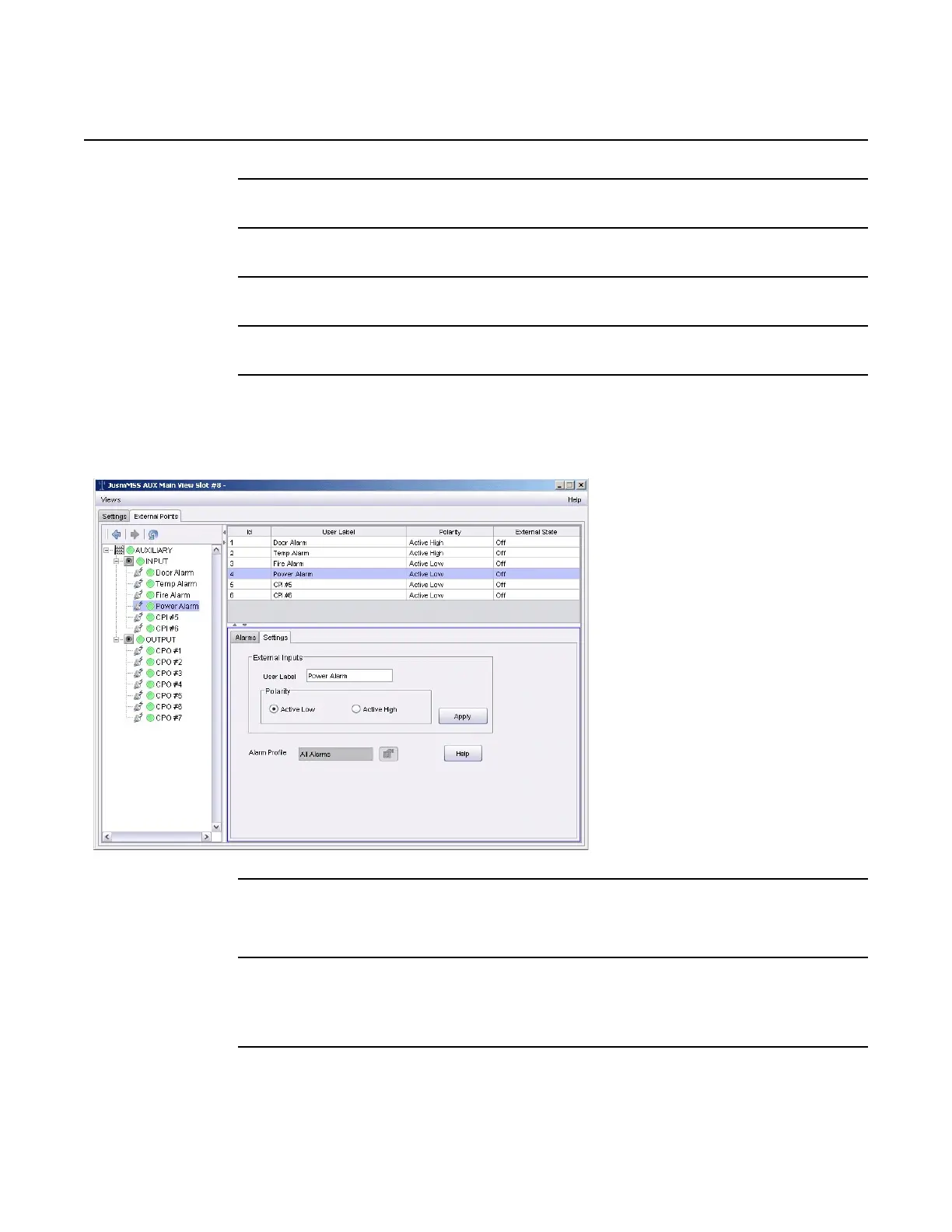

Figure 32 External alarm inputs provisioned
10. Close the AUX Main View window.
To provision external alarm outputs
1. Select MSS-4/AUX slot #4 or MSS-8/AUX slot #8 in the resource tree area.
This selection should also highlight the MSS/AUX card in blue on the graphical
representation of the MSS shelf in the resource list area.
2. Double-click on the blue AUX Card.
Release 7.0.0 3DB 19286 ACAA Issue 01
