Provision cross connections in a mixed fiber/
microwave Ring
648
WebEML User Manual

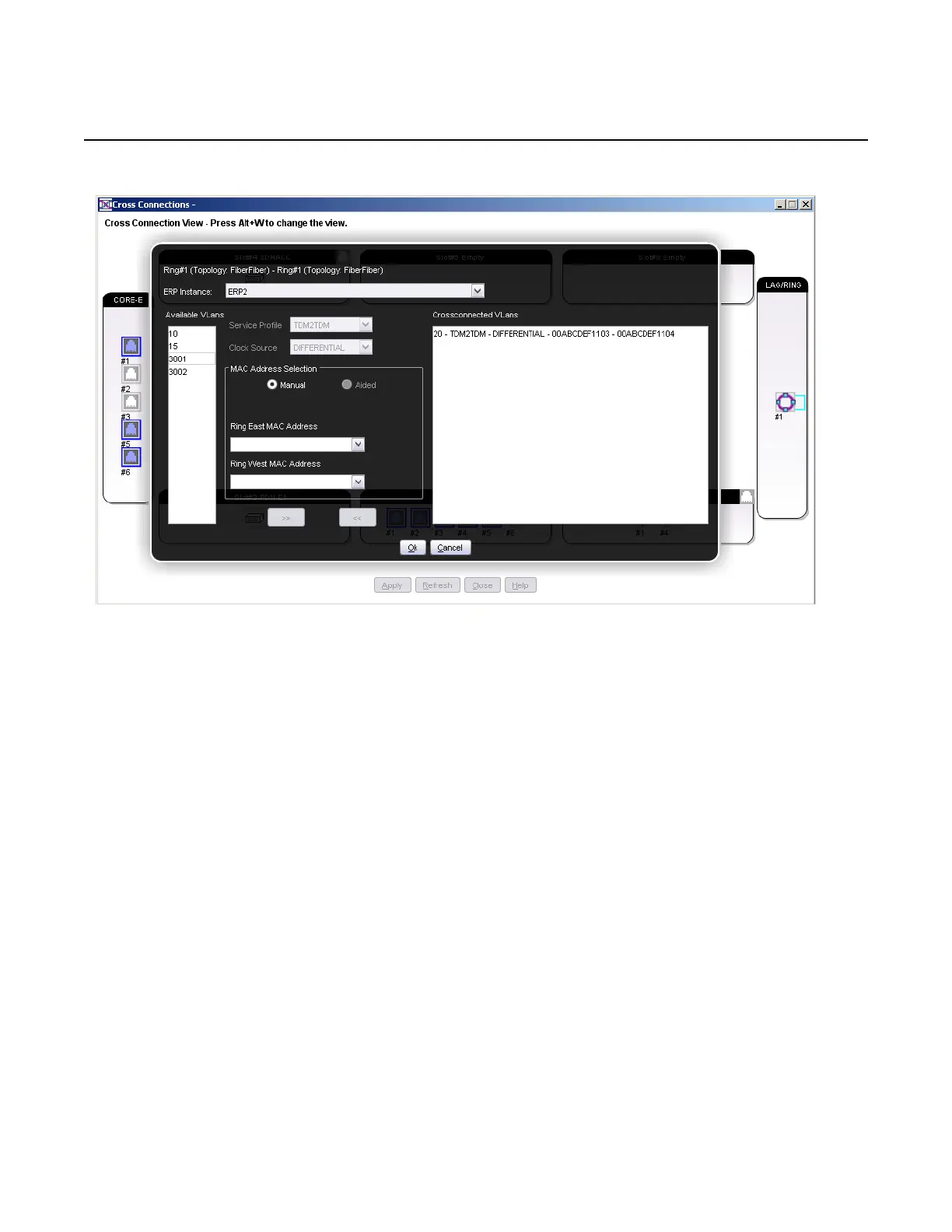

Figure 459 Node A to Node D: pass-through cross-connection on Node C
a. Choose the flow IDs to cross-connect from the Available VLANs list
b. Choose the Service profile: TDM2TDM or TDM2ETH
c. Choose the Clock Source, if the Service profile is TDM2ETH
d. Enter the Ring East MAC address: Node D Unicast MAC address
e. Enter the Ring West MAC address: Node A Unicast MAC address
• Configure a Radio-Ring or PDH-Ring cross-connection on Node D, see
Figure 460 and Figure 461.
