Nokia 9500 MPR - Figure 568 Rings Fiber Chain for Aided Cross-Connections Window

WebEML User Manual Provision Ring cross-connections using the
aided cross-connection tool
755

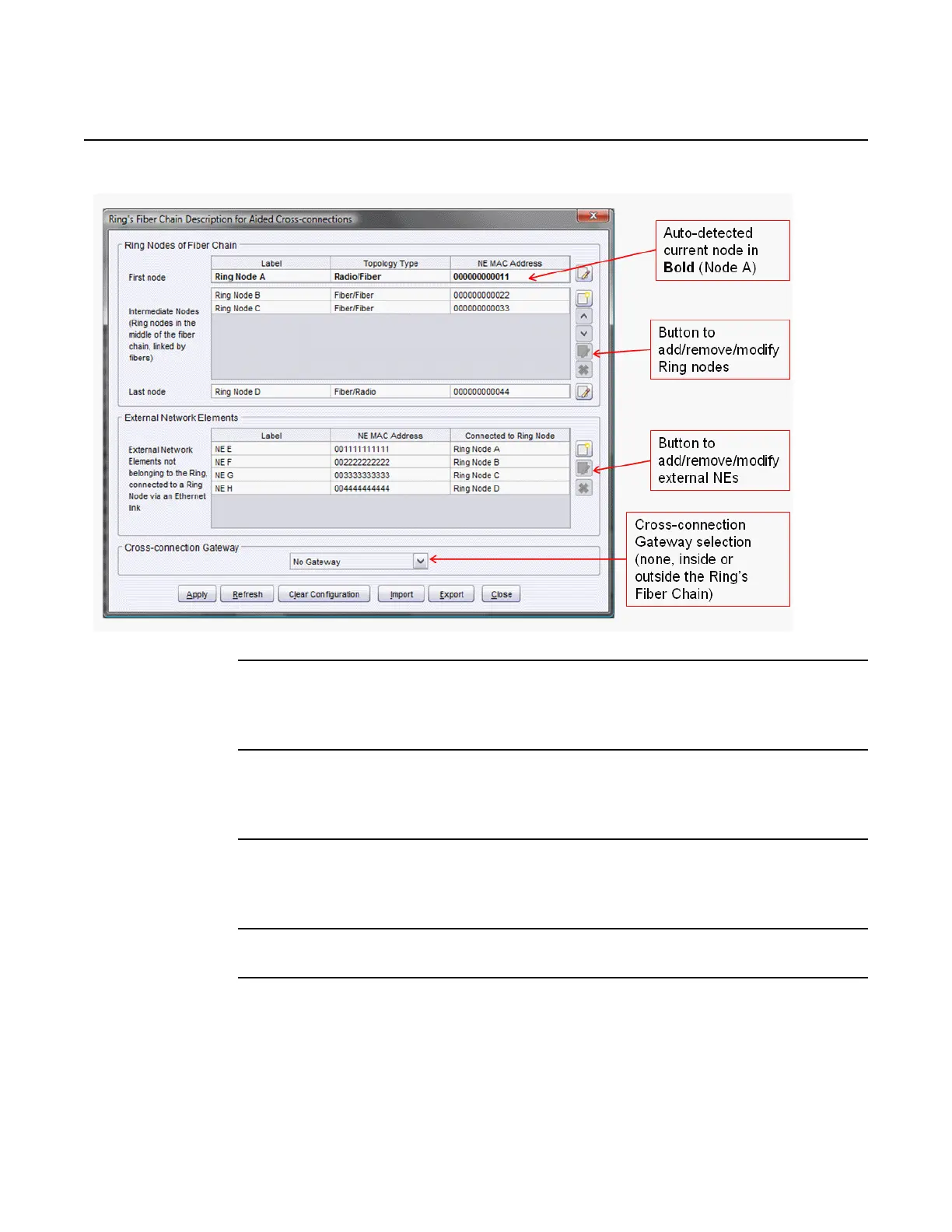

Figure 568 Ring’s Fiber Chain for Aided Cross-connections window
2. In the Ring Nodes of Fiber Chain panel, click on the button to add Ring nodes.
Enter the label, topology type and NE MAC address for each node in the fiber
chain. Verify that the correct nodes are entered as the first and last node.
3. In the External Network Elements panel, click on the button to add external NEs.
For each external NE, enter the label, NE MAC address, and the label of the
Ring Node to which the external NE is connected.
4. In the Cross-Connection Gateway panel, select either No Gateway, Outside
Ring’s Fiber Chain, or, if applicable, a node inside the fiber chain that aggregates
TDM flows.
5. Click on the Apply button.
6. Cross-connections window
