Nokia 9500 MPR - Figure 390 Activate Software on Node B

To Next Page

To Previous Page

WebEML User Manual Upgrade a Ring to R5.1.0 software

581

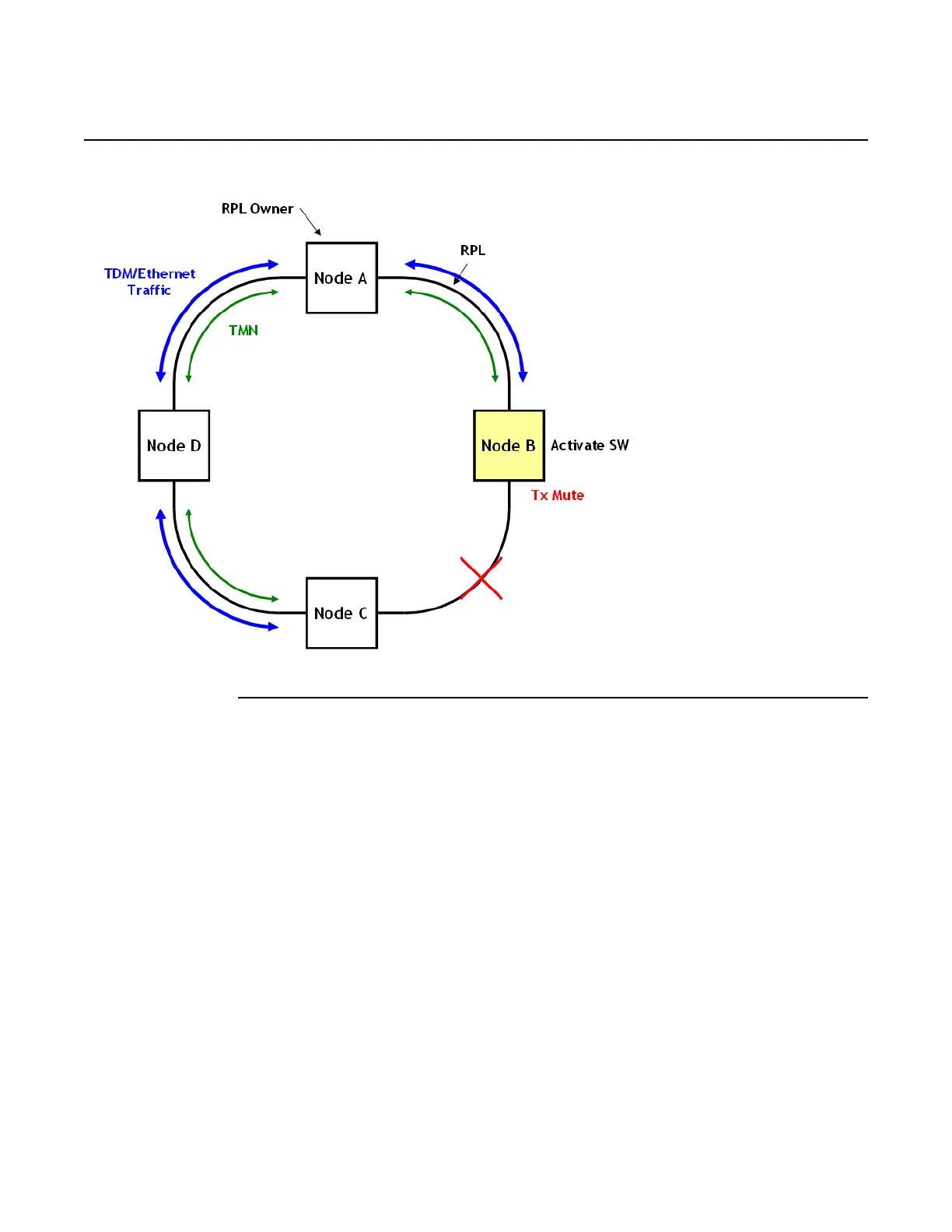

Figure 390 Activate software on Node B

5. Remove the Tx mute toward Node C, see Figure 391. After the WTR time has

expired, the RPL owner puts the Ring in idle state.

Release 7.0.0 3DB 19286 ACAA Issue 01
