Provision cross connections in a mixed fiber/
microwave Ring
640
WebEML User Manual

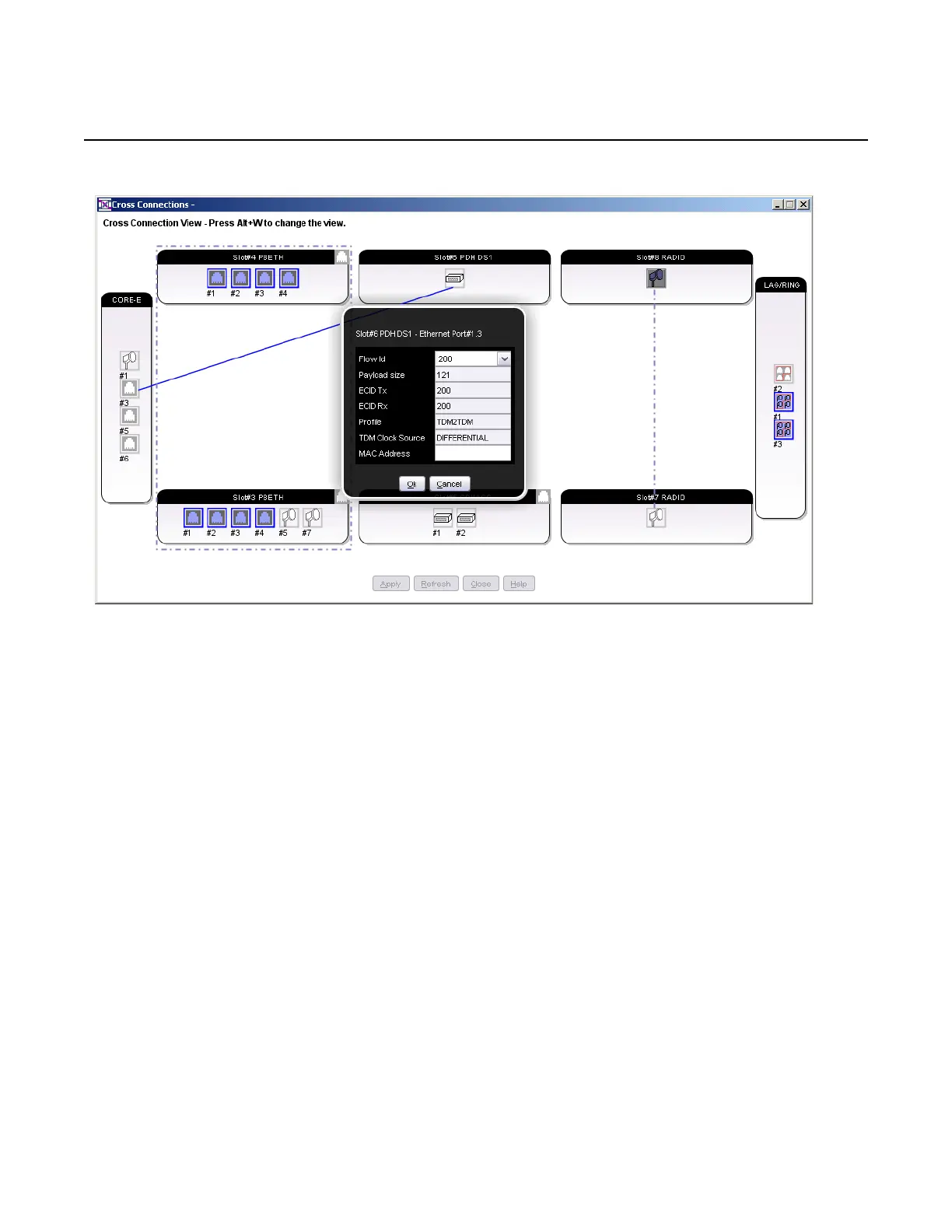

Figure 450 Node I to NE E (protected): Ethernet-PDH cross-connection on NE E
e. Choose the flow ID from the Flow Id drop-down
f. Configure the payload size, ECID Tx, and ECID Rx parameters
g. Choose the Service profile: TDM2TDM or TDM2ETH
h. Choose the TDM clock source, if the Service profile is TDM2ETH
i. Enter the MAC address: Node D Unicast MAC address
• Configure an Ethernet-Ring cross-connection on Node A, see Figure 451.
