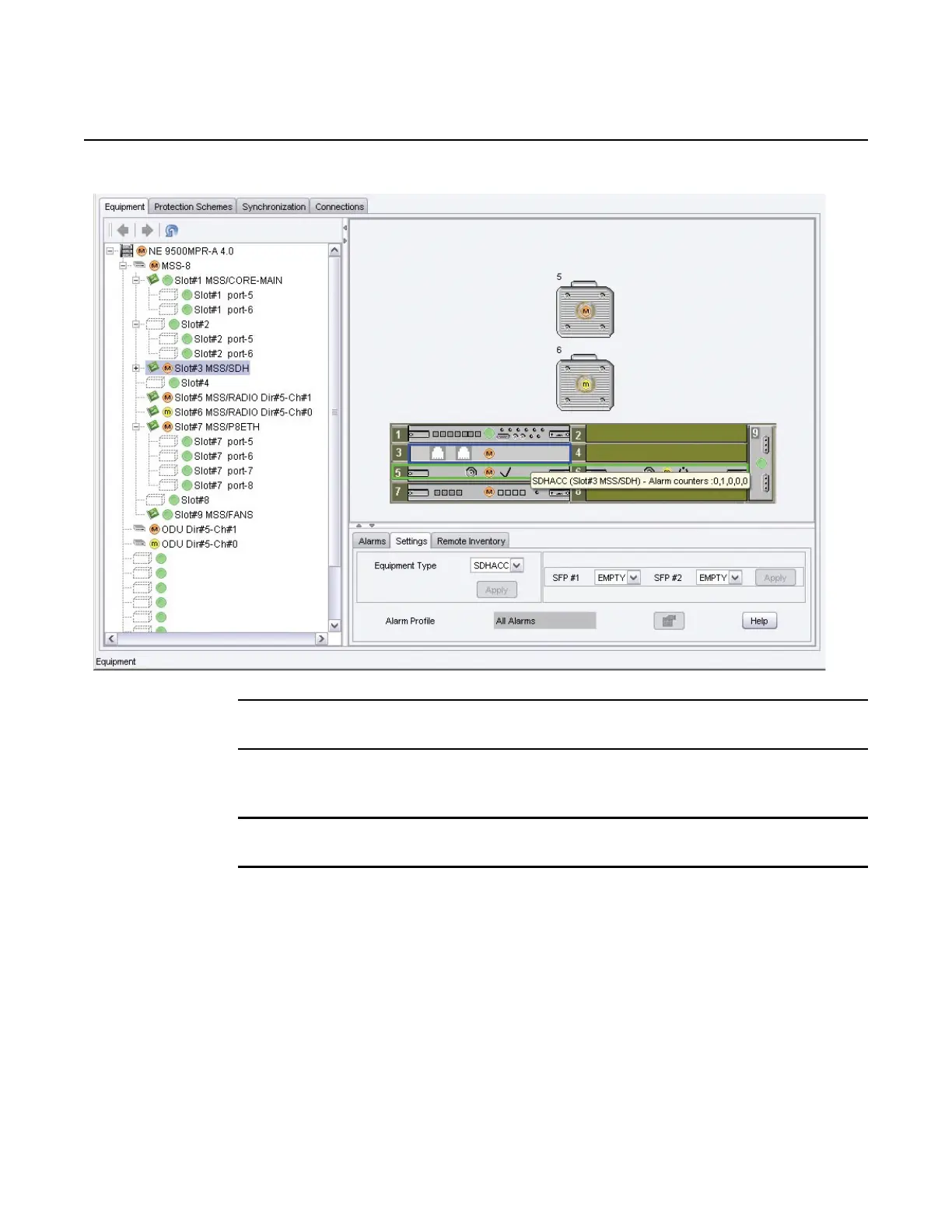

Figure 717 Main Equipment Window: PDH OC-3 Transponder Card highlighted
2. The PDH/SDH Main View for the selected PDH/SDH transponder opens.
3. Select Loopback tab. For E1, DS1 or DS3 loopback, see Figure 718. For SDH
loopback, see Figure 719.
4. For SDH loopback, select Port#s.n. See Figure 719.
5. For PDH loopback, select Port#nn Internal from the resource tree area; DS1
Port#1-32 Internal or DS3 Port#1-2 Internal. See Figure 718.
For SDH loopback, select COREFACING from the resource tree area.
See Figure 719.
