WebEML User Manual Use the Provisioning Tool
893

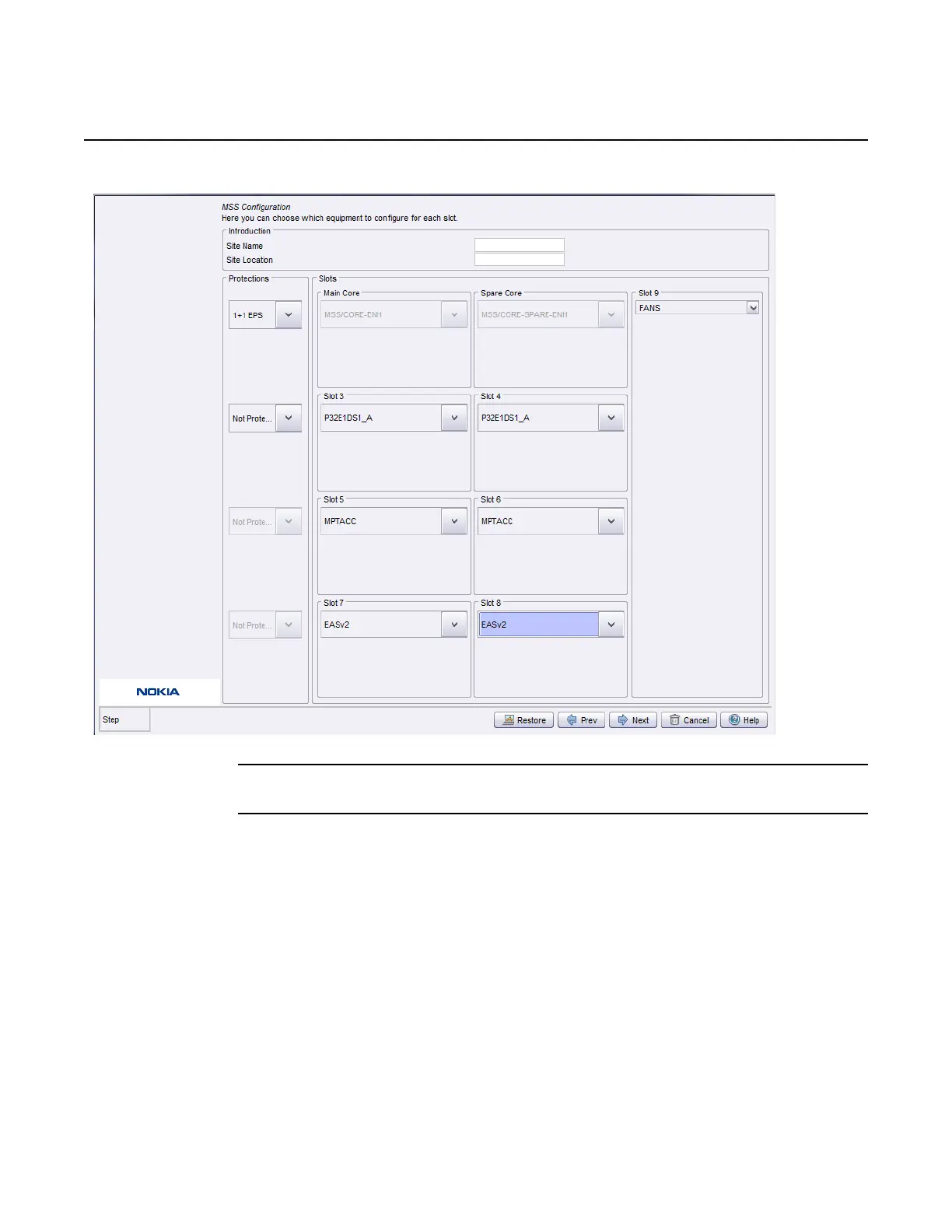

Figure 667 MSS Configuration screen example
4. Click on the Next button. The Core Configuration screen opens.
5. In the Core Configuration screen, perform the following for each Ethernet port.
See Figure 668.
i. Choose the working mode from the drop-down menu:
• Transport: to be used as GigaEthernet interface for Ethernet traffic
(Note: for port#5 and port#6 the optional SFP must be installed);
• MPT-HC or MPT-HQAM: to be used to connect an MPT-HC to port#1
to port#4; an MPT-HC or MPT-HQAM to port#5 and port#6.
• Ethernet port #4, if enabled, has three different Working modes: TMN,
Transport or MPT-HC/MPT-HQAM.
ii. If the working mode is set to Transport, enable or disable autonegotiation
and flow control.
Release 7.0.0 3DB 19286 ACAA Issue 01
