Nokia 9500 MPR - Figure 34 External Alarm Outputs Provisioned

WebEML User Manual Administer external alarm points on an Auxiliary
card
115

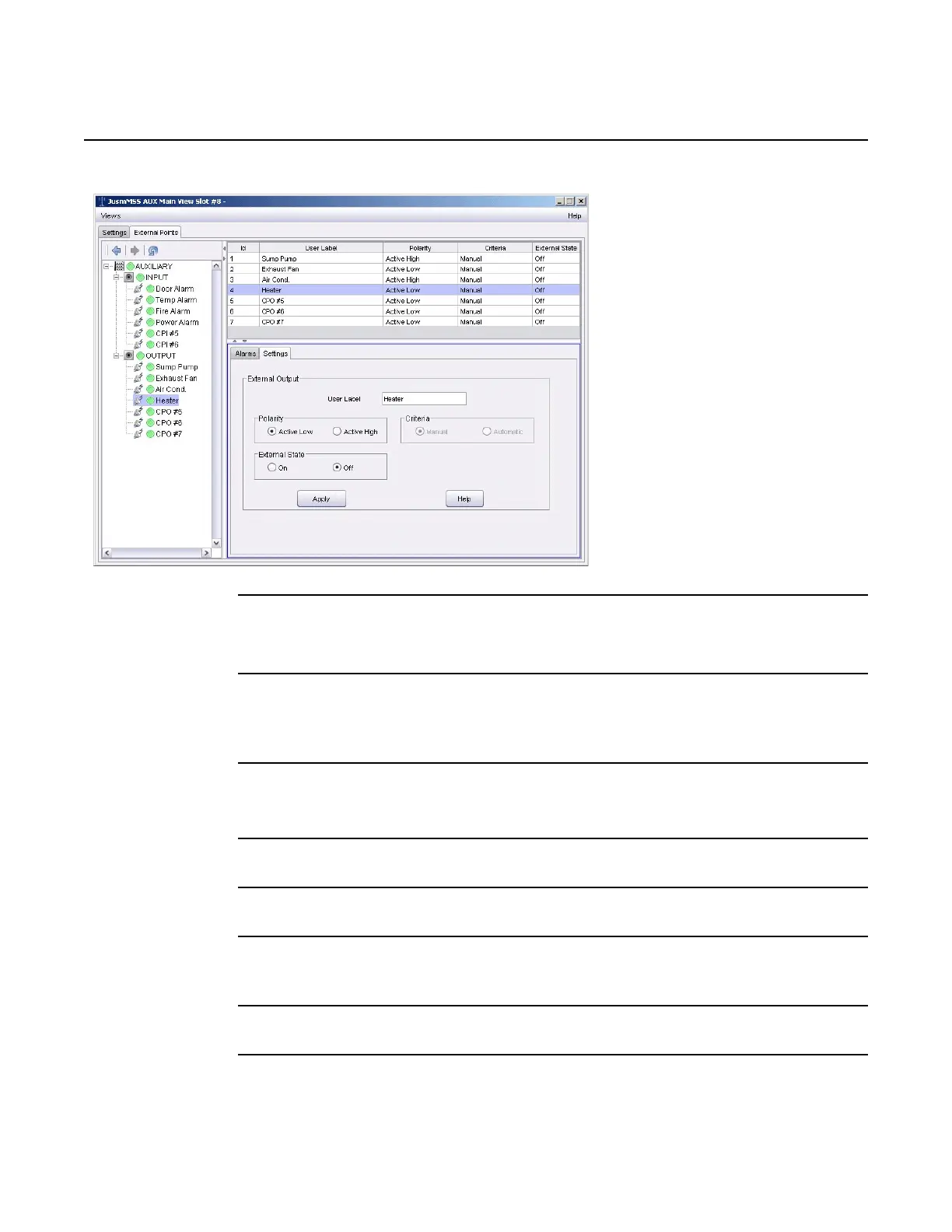

Figure 34 External Alarm Outputs provisioned
9. Close the AUX Main View window.
To provision external alarm output state
1. Select MSS-4/AUX slot #4 or MSS-8/AUX slot #8 in the resource tree area.
This selection should also highlight the MSS/AUX card in blue on the graphical
representation of the MSS shelf in the resource list area.
2. Double-click on the blue AUX Card.
The AUX Main View window opens.
3. Click the External Points tab.
4. Click the Settings tab. See Figure 34.
5. Select External Alarm Point to change alarm state in the resource tree area or
Resource List Table.
6. Select the External Output External State radio button, On or Off.
7. Click Apply.
Release 7.0.0 3DB 19286 ACAA Issue 01
