Nokia 9500 MPR - Figure 700 IEEE 802.1 P

WebEML User Manual Use the Provisioning Tool
931

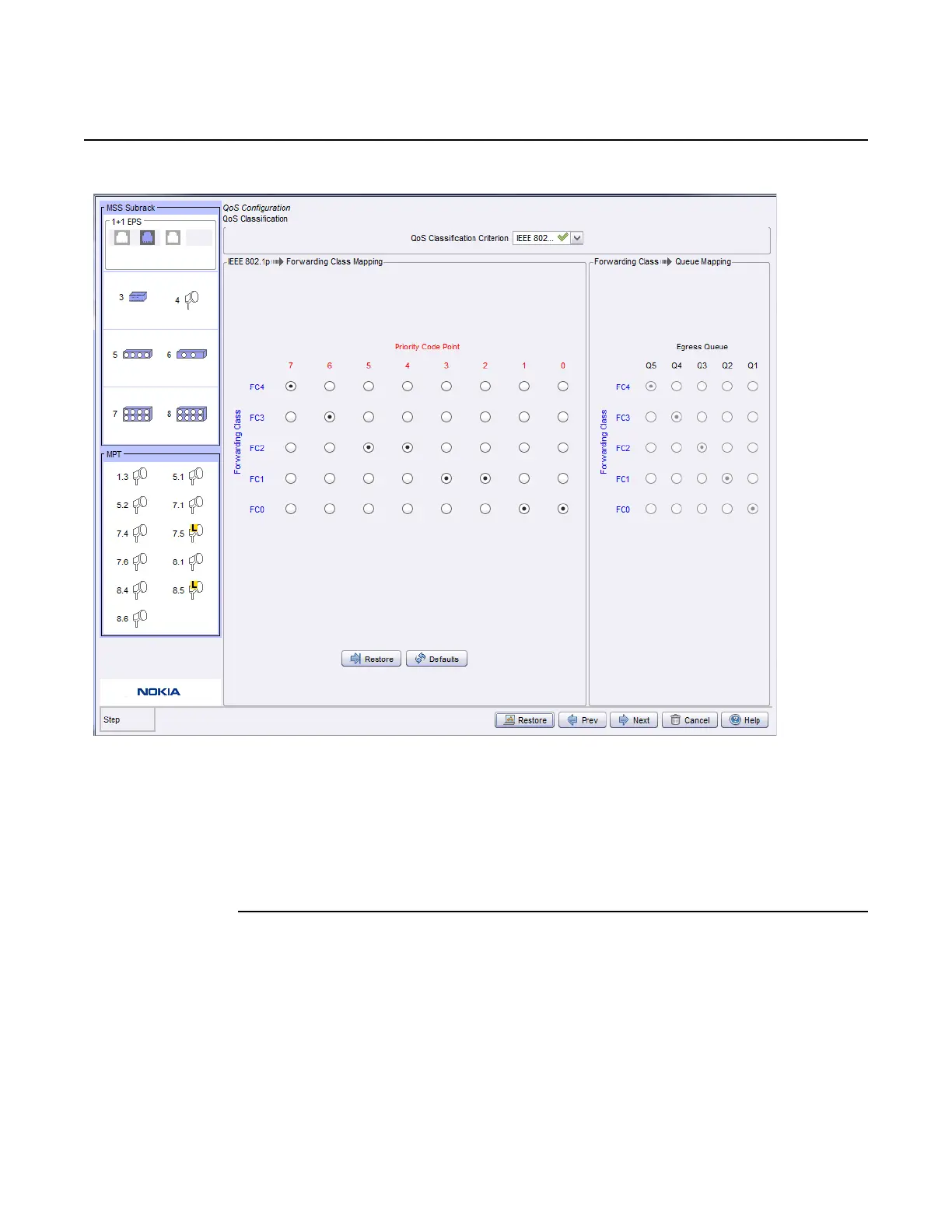

Figure 700 IEEE 802.1p
Perform the following to classify the Priority Code Point to a specific queue:
i. Change the classification on the left area clicking on a radio button. The
modification will appear in yellow.
Click on Restore to go back to the previous configuration or on Defaults to
go back to the default settings.
ii. Click on Next to complete the configuration.
6. Figure 701 shows the DiffServ configuration screen, with the default settings.
Release 7.0.0 3DB 19286 ACAA Issue 01
