Nokia 9500 MPR - Figure 550 NE E to NE G: Ethernet-PDH Cross-Connection on NE E

WebEML User Manual Provision cross connections in a mixed fiber/
microwave Ring
735

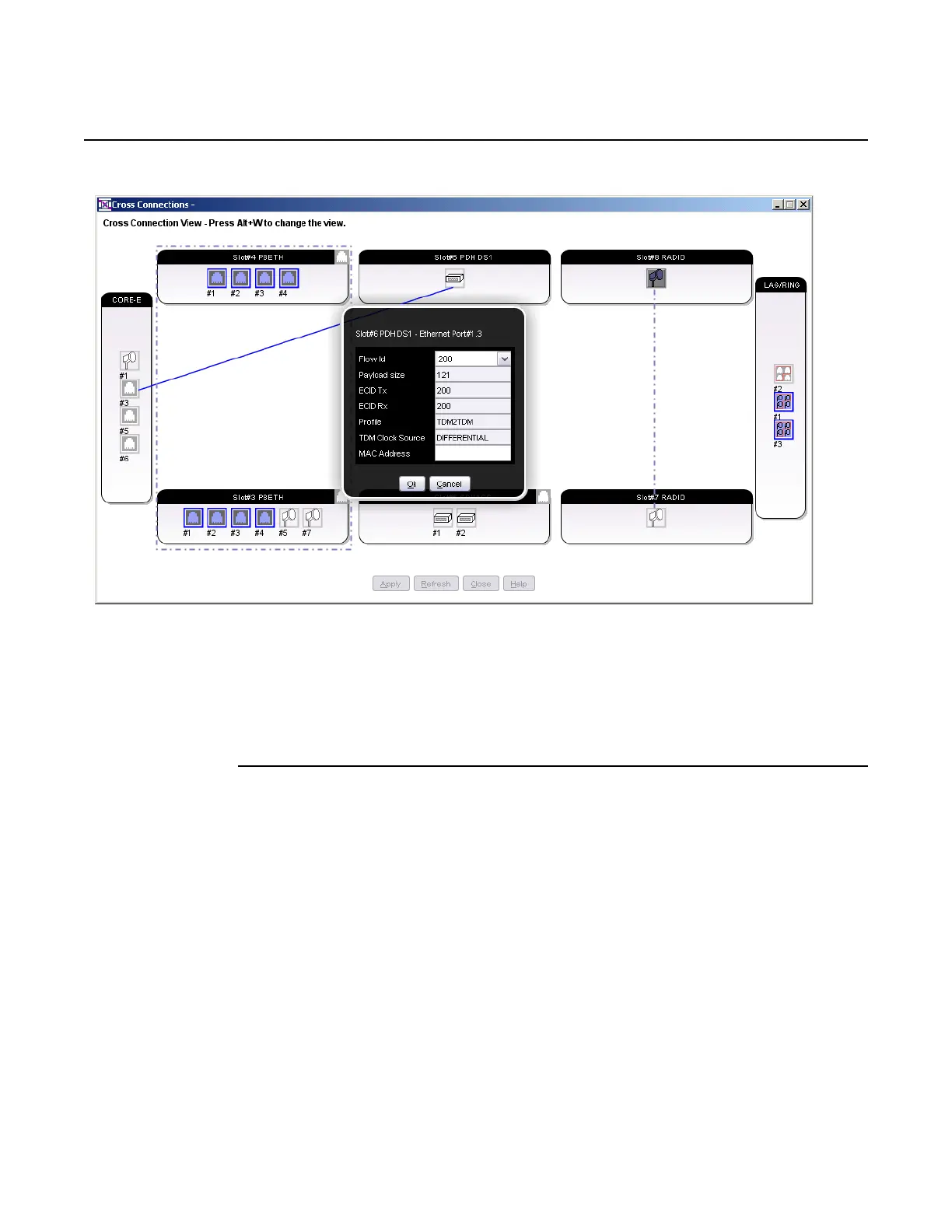

Figure 550 NE E to NE G: Ethernet-PDH cross-connection on NE E
e. Choose the flow ID from the Flow Id drop-down
f. Configure the payload size, ECID Tx, and ECID Rx parameters
g. Choose the Service profile: TDM2TDM or TDM2ETH
h. Choose the TDM clock source, if the Service profile is TDM2ETH
i. Enter the MAC address: NE G Unicast MAC address
2. Configure an Ethernet-Radio or Ethernet-PDH cross-connection on NE G, see
Figure 551 and Figure 552.
Release 7.0.0 3DB 19286 ACAA Issue 01
