WebEML User Manual Administer synchronization
339

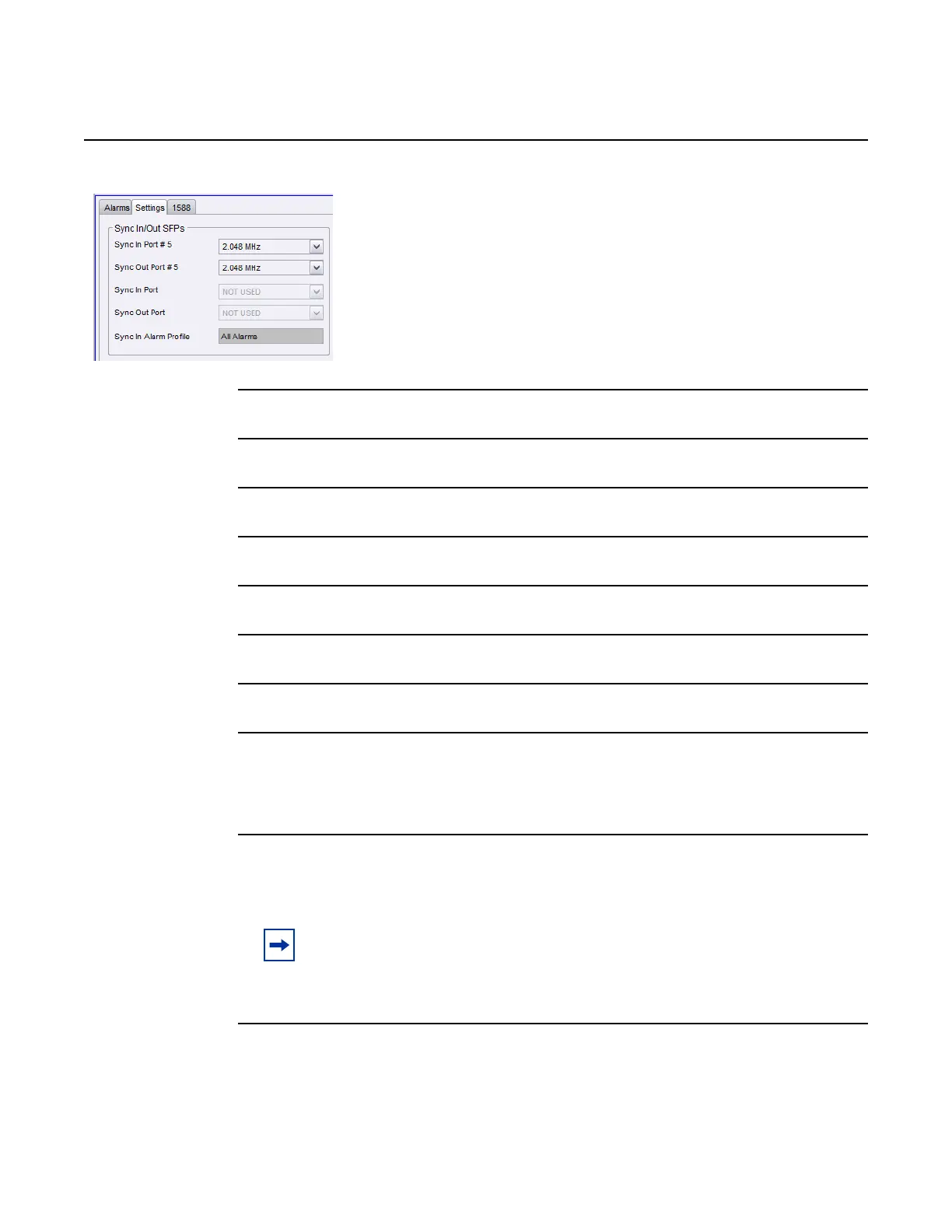

Figure 186 Sync Ports with Sync-In/Out SFP
22. Go to step 29.
23. From the E1/DS1 Port drop-down menu, select the E1/DS1 Port.
24. Go to step 29.
25. From the Eth Port drop-down menu, select the Eth Port.
26. Go to step 29.
27. From the STM-1/OC-3 Port drop-down menu, select the STM-1/OC-3 Port.
28. Go to step 29.
29. Provision Sync Out Port?
a. If yes, go to step 30.
b. If no, go to step 31.
30. In the Sync Ports partition, from the Sync Out Port drop-down menu, select the
Sync Out Port frequency: 1.024 MHz, 2.048 MHz, 5 MHz, or 10 MHz.
31. In the Wait-To-Restore time entry boxes select the wait to restore time in
minutes (min.) [0-12] and seconds (sec.) [0, 10, 20, 30, 40, 50].
Note: If a Sync-In/Out SFP is in use, the Sync Ports area is labeled Sync In/Out
SFPs. The Sync Out Port appears as NOT USED. The SFP is displayed as Sync
Out Port #5, #6, #7, #8, depending on where the SFP is placed; see Figure 186.
Release 7.0.0 3DB 19286 ACAA Issue 01
