Nokia 9500 MPR - Figure 520 NE F to Node C: Pass-Through Cross-Connection on Node D

WebEML User Manual Provision cross connections in a mixed fiber/
microwave Ring
705

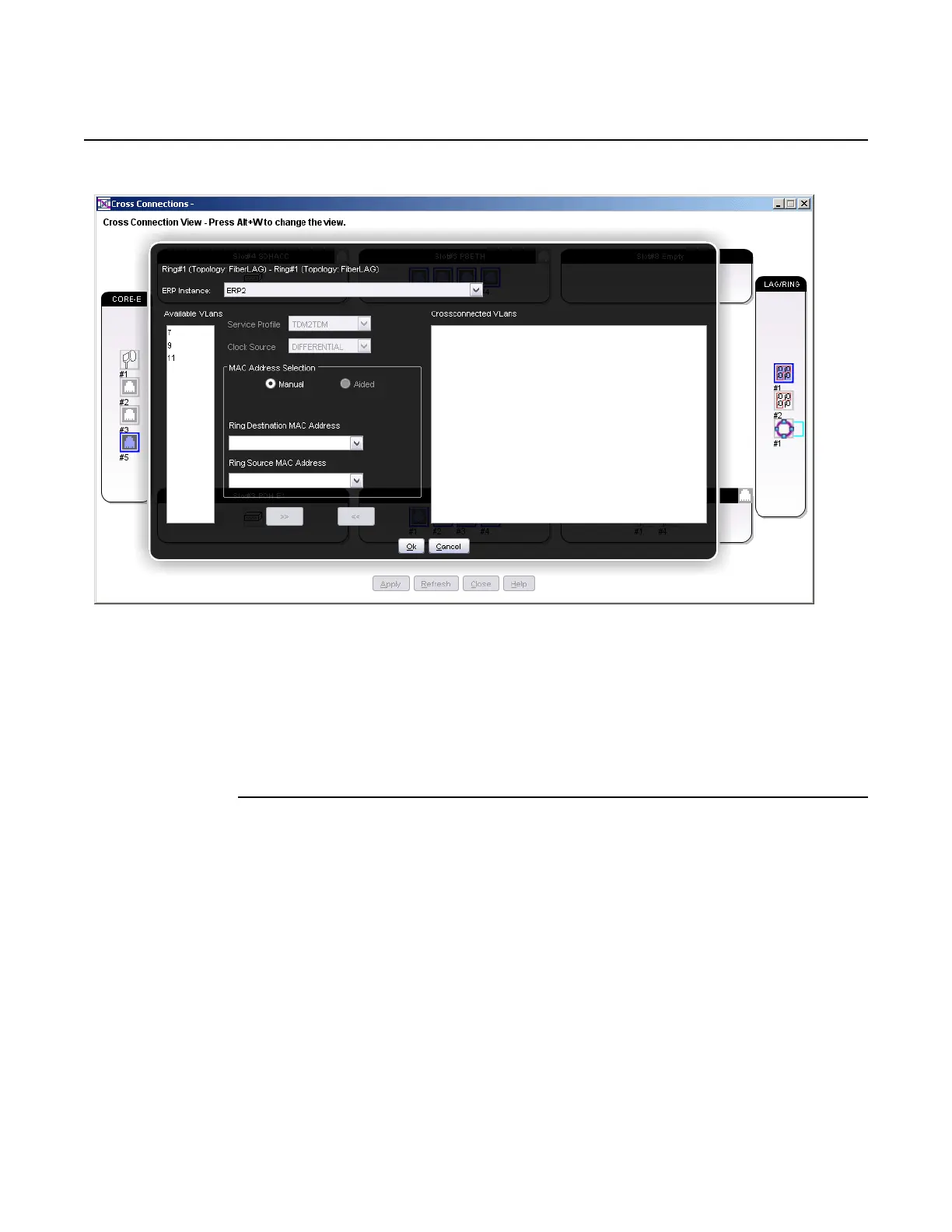

Figure 520 NE F to Node C: pass-through cross-connection on Node D
a. Choose the flow IDs to cross-connect from the Available VLANs list
b. Choose the Service profile: TDM2TDM or TDM2ETH
c. Choose the Clock Source, if the Service profile is TDM2ETH
d. Enter the Ring Destination MAC address: Node C Unicast MAC address
e. Enter the Ring Source MAC address: NE F Unicast MAC address
To provision a cross-connection between NE F and Node C (protected)
1. One traffic end point is connected using Ethernet to the fiber chain. This end
point, at Node C, is protected, see Figure 521.
