Nokia 9500 MPR - Figure 515 NE F to Node C: Ethernet-PDH Cross-Connection on NE F

Provision cross connections in a mixed fiber/
microwave Ring
700
WebEML User Manual

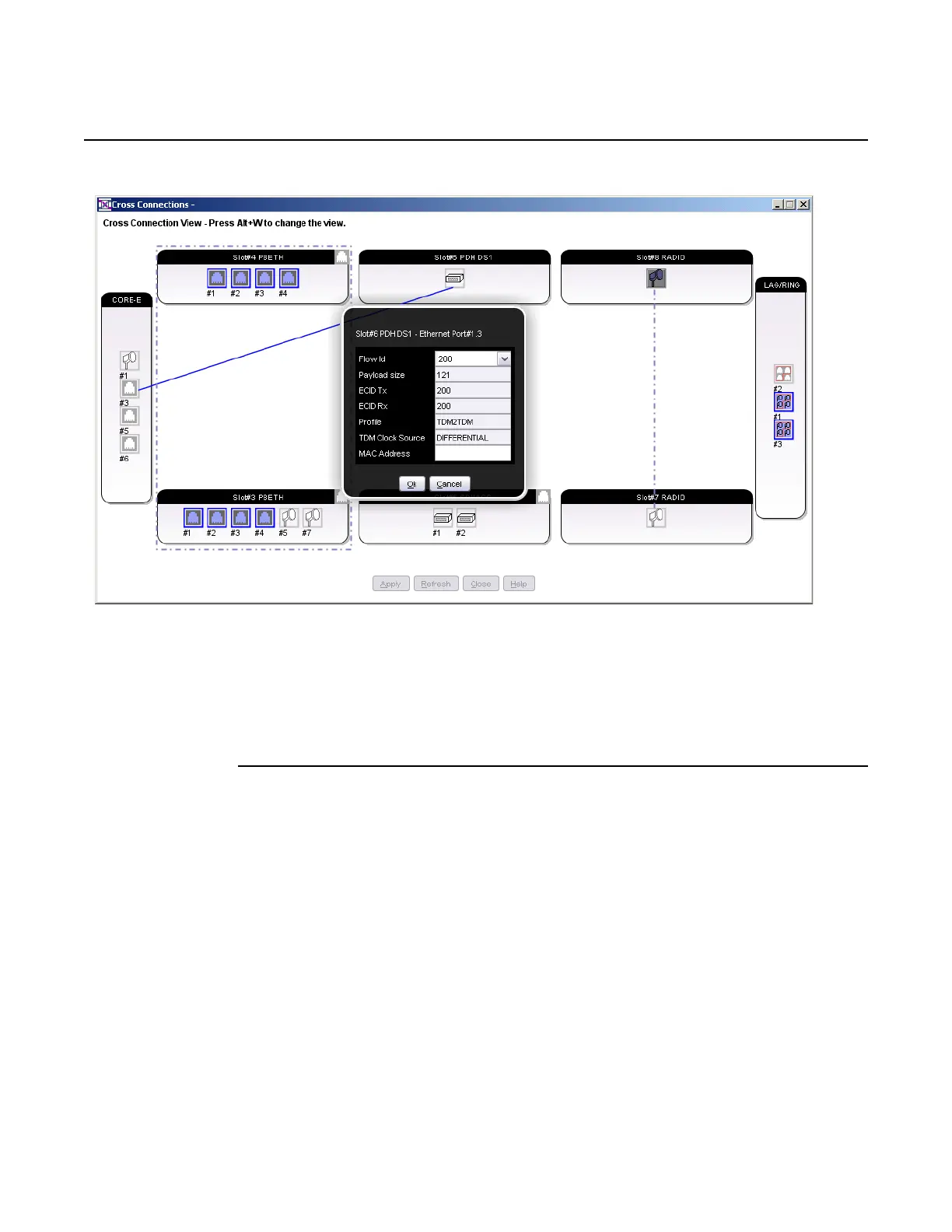

Figure 515 NE F to Node C: Ethernet-PDH cross-connection on NE F
e. Choose the flow ID from the Flow Id drop-down
f. Configure the payload size, ECID Tx, and ECID Rx parameters
g. Choose the Service profile: TDM2TDM or TDM2ETH
h. Choose the TDM clock source, if the Service profile is TDM2ETH
i. Enter the MAC address: Node C Unicast MAC address
2. Configure an Ethernet-Ring cross-connection on Node B, see Figure 516.
Release 7.0.0 3DB 19286 ACAA Issue 01
