Nokia 9500 MPR - Figure 576 Protection Schemes Resource Tree Expanded; 57 Provision Protection Scheme Parameters

Provision protection scheme parameters
764
WebEML User Manual

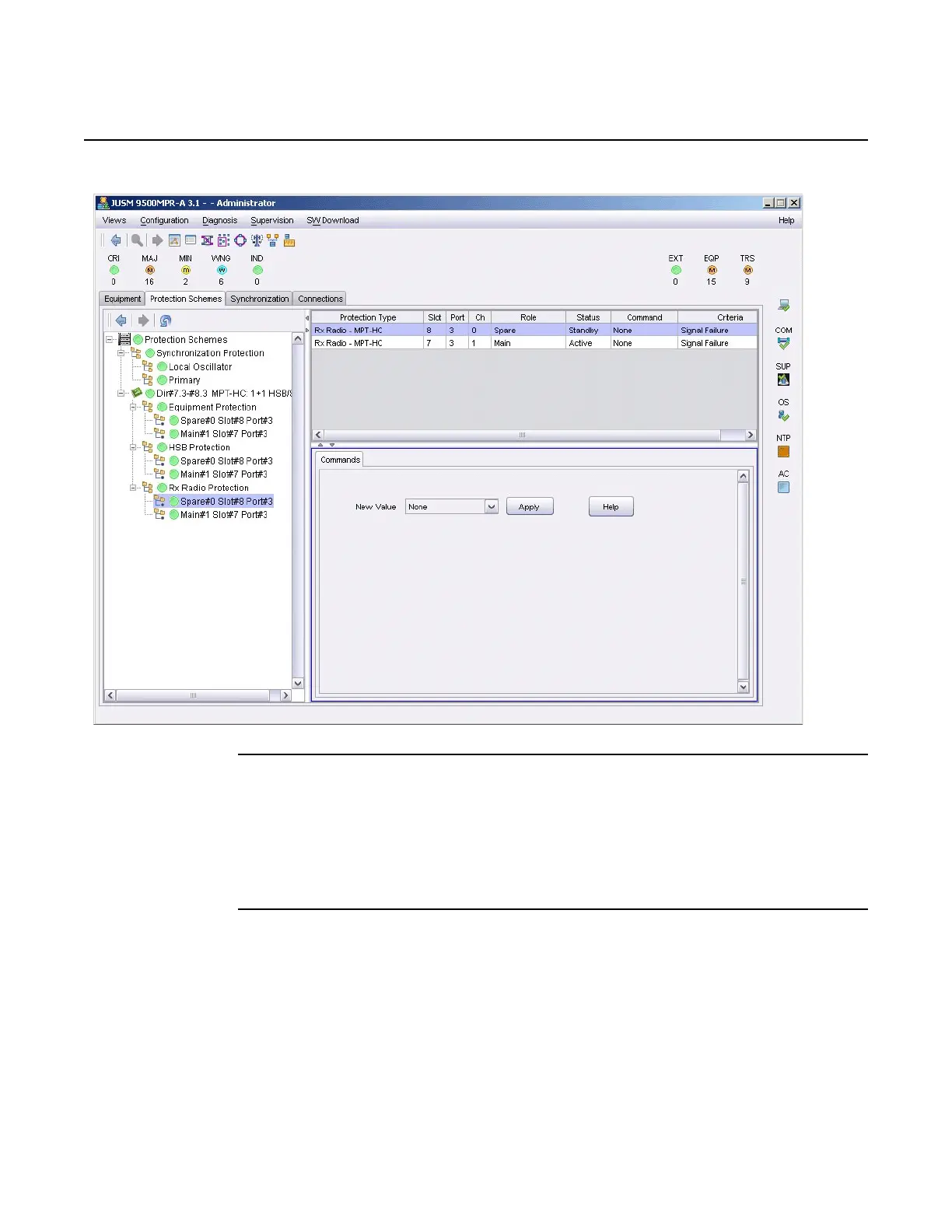

Figure 576 Protection Schemes resource tree expanded
3. Protection scheme
Select action.
a. To View Core Protection Scheme parameters, go to step 4.
b. To View Synchronization Protection Scheme parameters, go to step 6.
c. To View Radio Channel Protection Schemes parameters, go to step 7
4. View Core Protection Scheme parameters
Select Protection Schemes/Slot#1-2/Equipment Protection in the resource tree
area.
The Protection Schemes Parameter tab displays Core protection scheme
parameters in the main window. See Figure 577.
Release 7.0.0 3DB 19286 ACAA Issue 01
