Nokia 9500 MPR - Figure 267 Provision P2 E3 DS3 DS3 Port

Provision equipment port
448
WebEML User Manual
All ports on a DS3 card must be provisioned to the same method of
clock recovery, either adaptive or differential. After the first port on a
card is provisioned, all remaining ports on the card will default to the
clock recovery method selected on the first port.
j. From the Payload Size drop-down menu, select payload size: 1024.
k. From the TDM Clock Source drop-down menu, select TDM Clock Source:
Adaptive or Differential.
l. Enter the unique ECID Tx value.
m. Enter the unique ECID Rx value.
n. Click Apply.

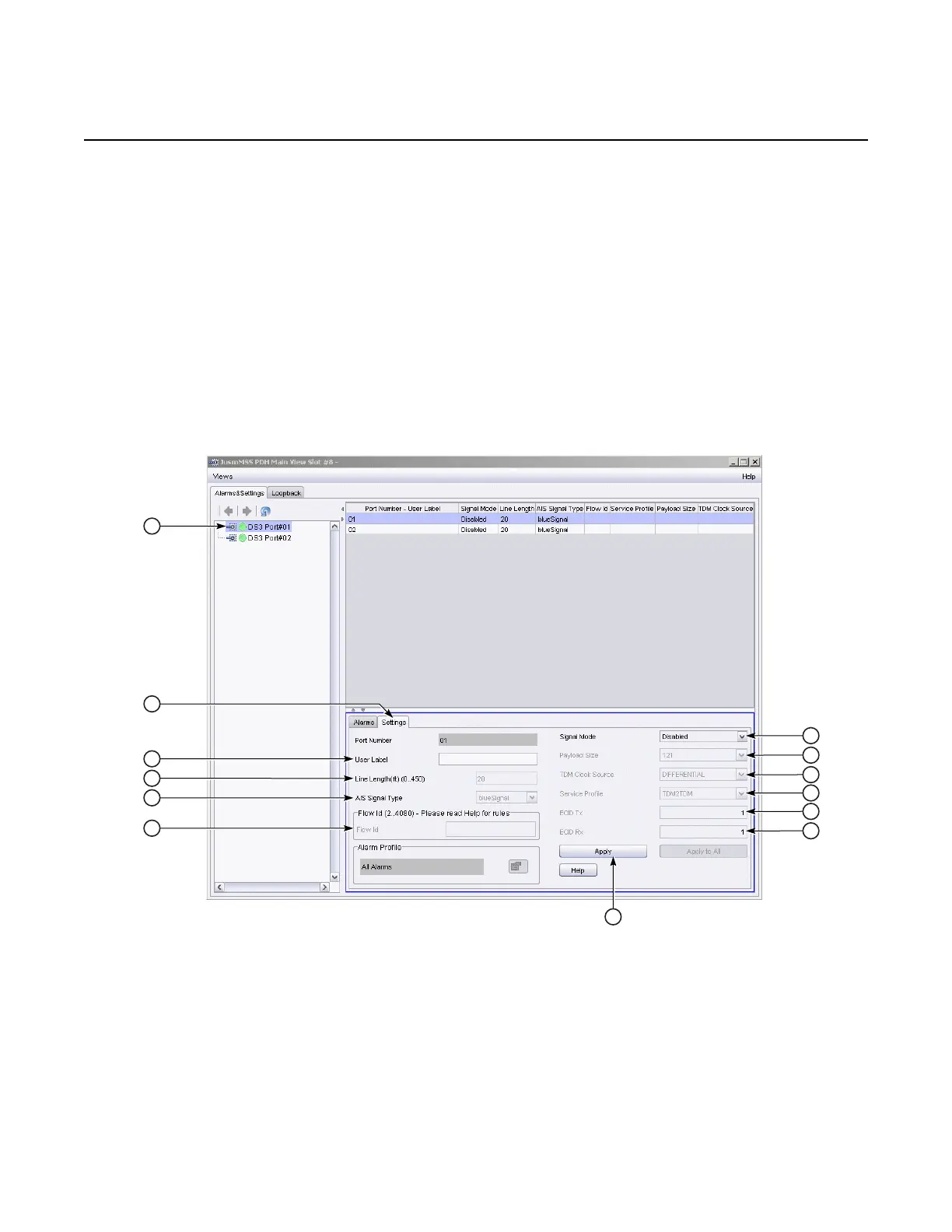

Figure 267 Provision P2E3DS3 DS3 port
The PDH Main View updates adding the provisioned DS3 port to the
resource list area. See Figure 268 and Figure 269.
