Nokia 9500 MPR - Figure 240 Provision Core;Eas;Mss-O Ethernet Port VLAN Configuration Parameters

WebEML User Manual Provision Ethernet ports
415
g. Click on the Apply button.
To provision Ethernet port VLAN configuration parameters
1. Provision Ethernet port VLAN Configuration parameters using the following
procedure. See Figure 240.

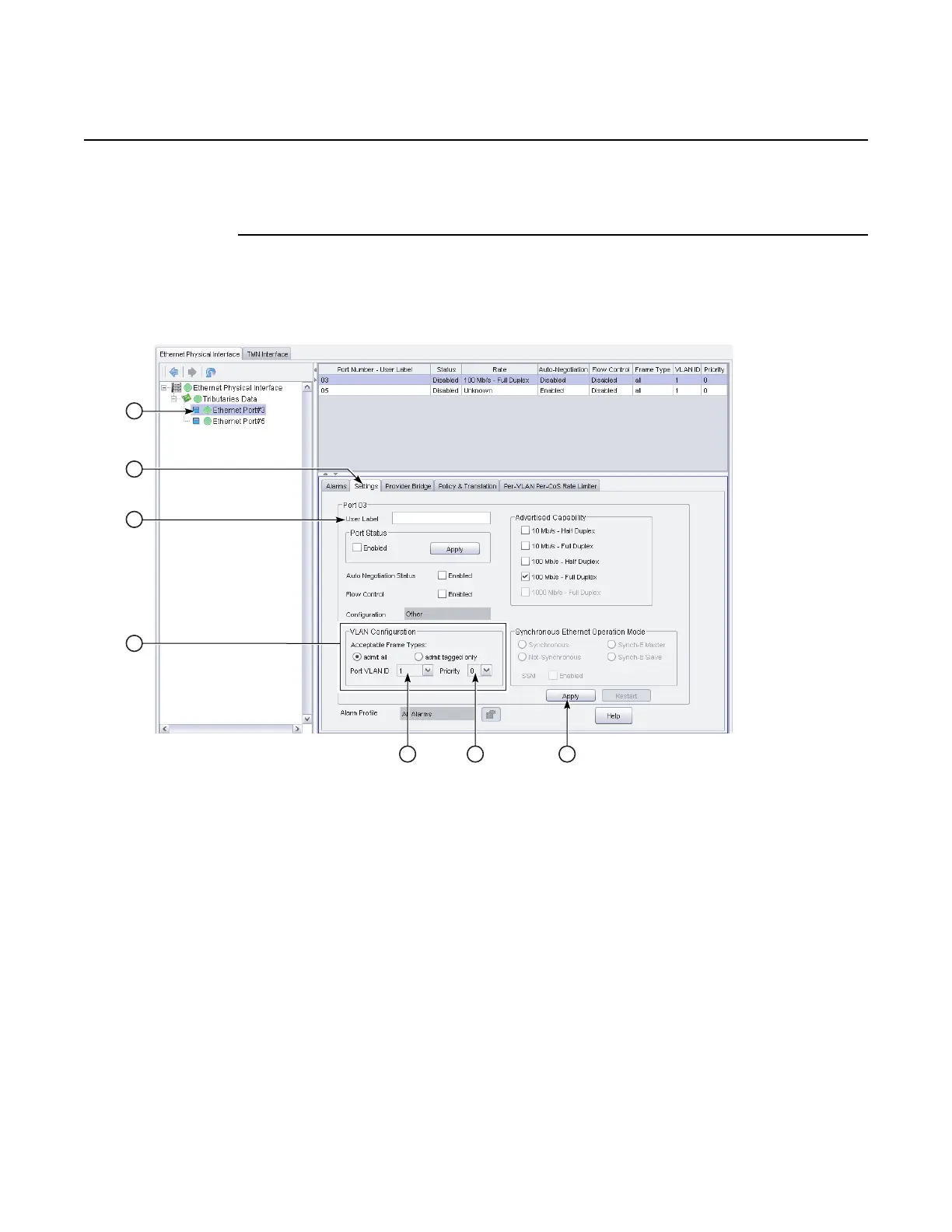

Figure 240 Provision Core/EAS/MSS-O Ethernet port VLAN configuration parameters
a. Select Ethernet Port#n to provision (Ethernet Port #1/#8).
b. Select Settings tab.
c. Configure a user port label if needed.
d. Provision VLAN Configuration, select Acceptable Frame Types: admit all
or Admit tagged only.
e. Acceptable frame type selected?
a. If admit all, go to step b.
b. If admit tagged only, go to step h.
f. From the Port VLAN ID drop-down menu, select Port VLAN ID: 1 - 4080.
g. From the Priority drop-down menu, select Priority: 0 - 7.
h. Click on the Apply button.
