Disable equipment

546

WebEML User Manual

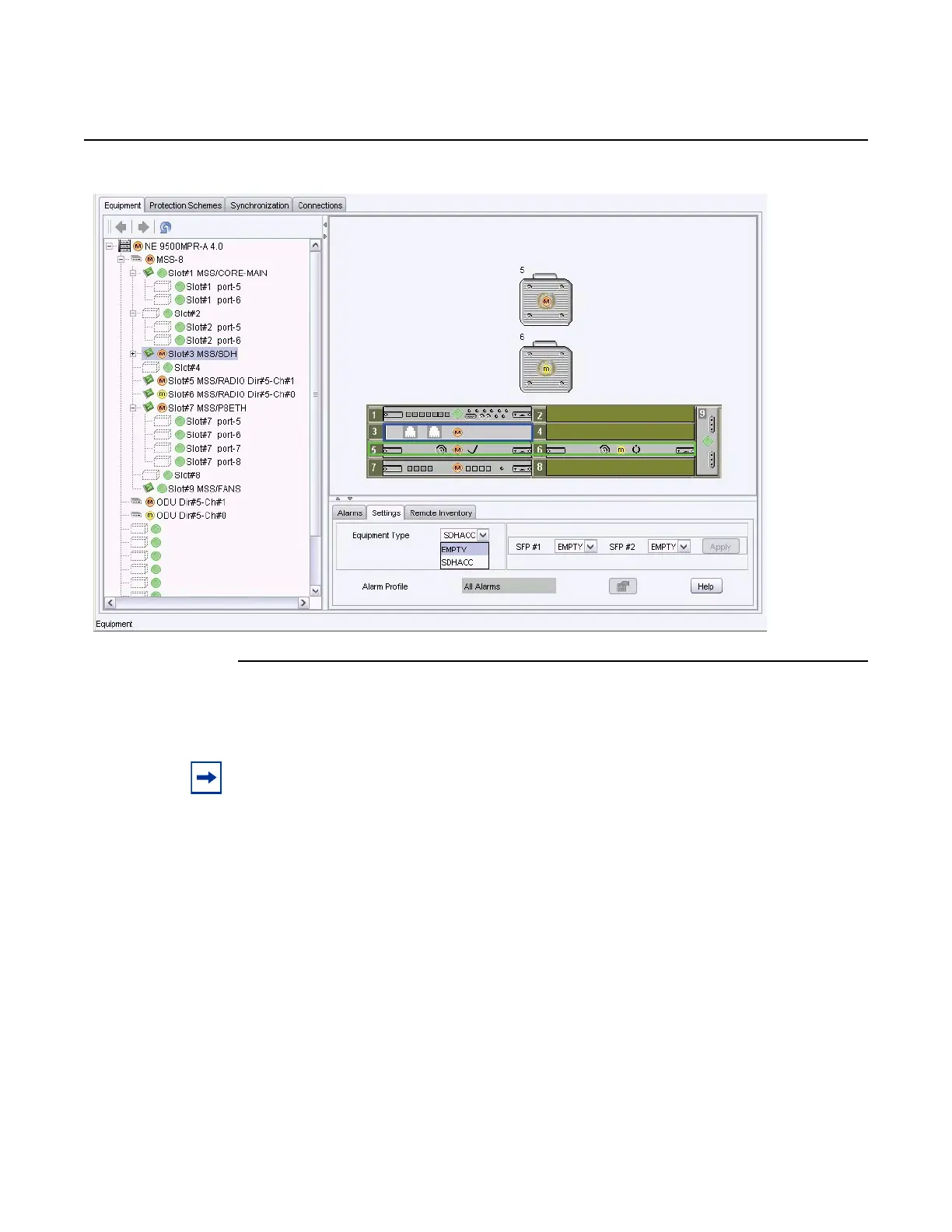

Figure 360 Disable SDHACC

4. Click Apply.

The card disabled will be removed from the selected slot #. See Figure 361.

Note: The SDH Card will not be disabled if the card has cross-connects and/or equipment

ports associated.

Release 7.0.0 3DB 19286 ACAA Issue 01
