Nokia 9500 MPR - Figure 331 Select Slot#8 to Enable Auxiliary Card

To Next Page

To Previous Page

WebEML User Manual Enable equipment

515

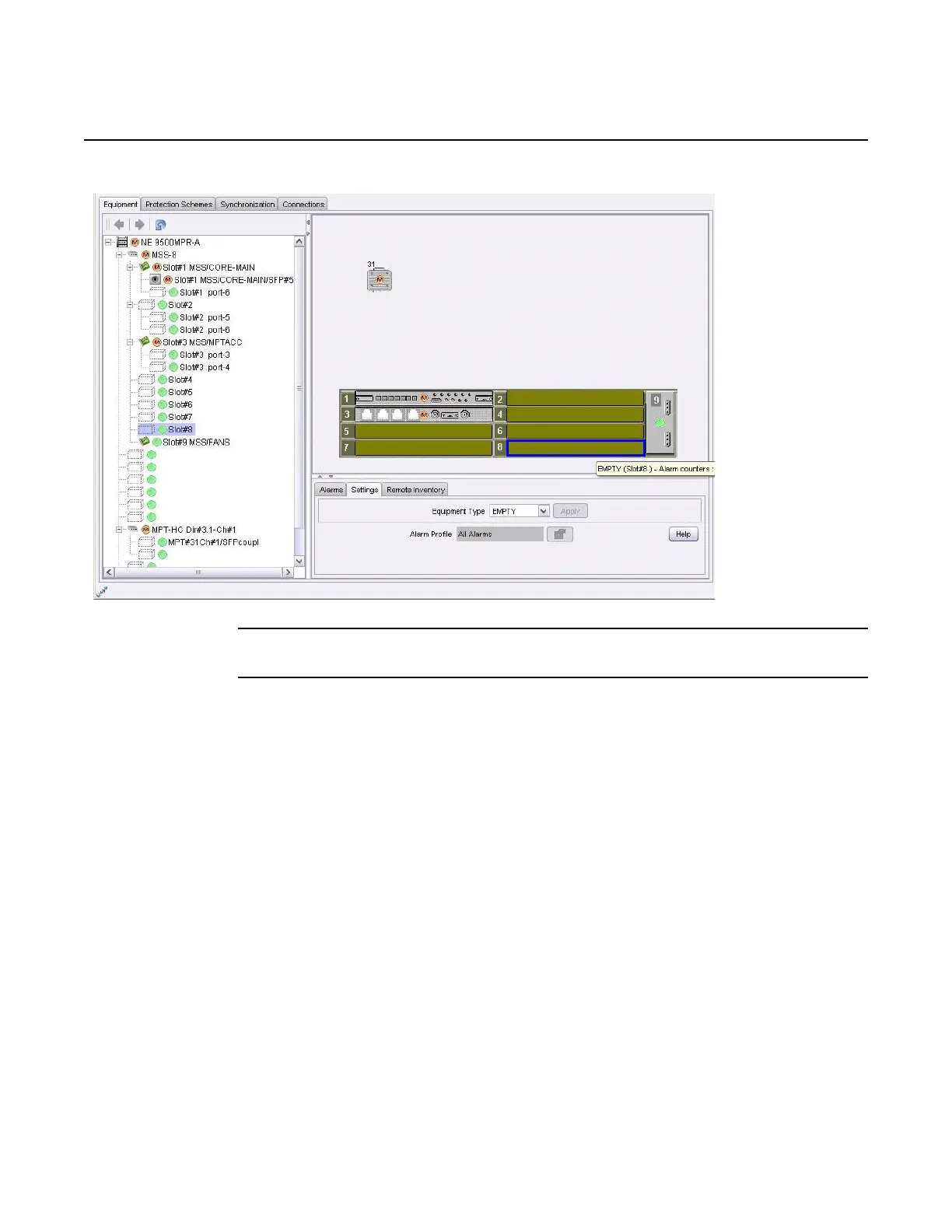

Figure 331 Select Slot#8 to enable auxiliary card

2. Click the Settings Tab in the resource detail area.

3. From the Equipment Type drop-down menu, select AUX. See Figure 332.

Release 7.0.0 3DB 19286 ACAA Issue 01
