WebEML User Manual Enable equipment

509

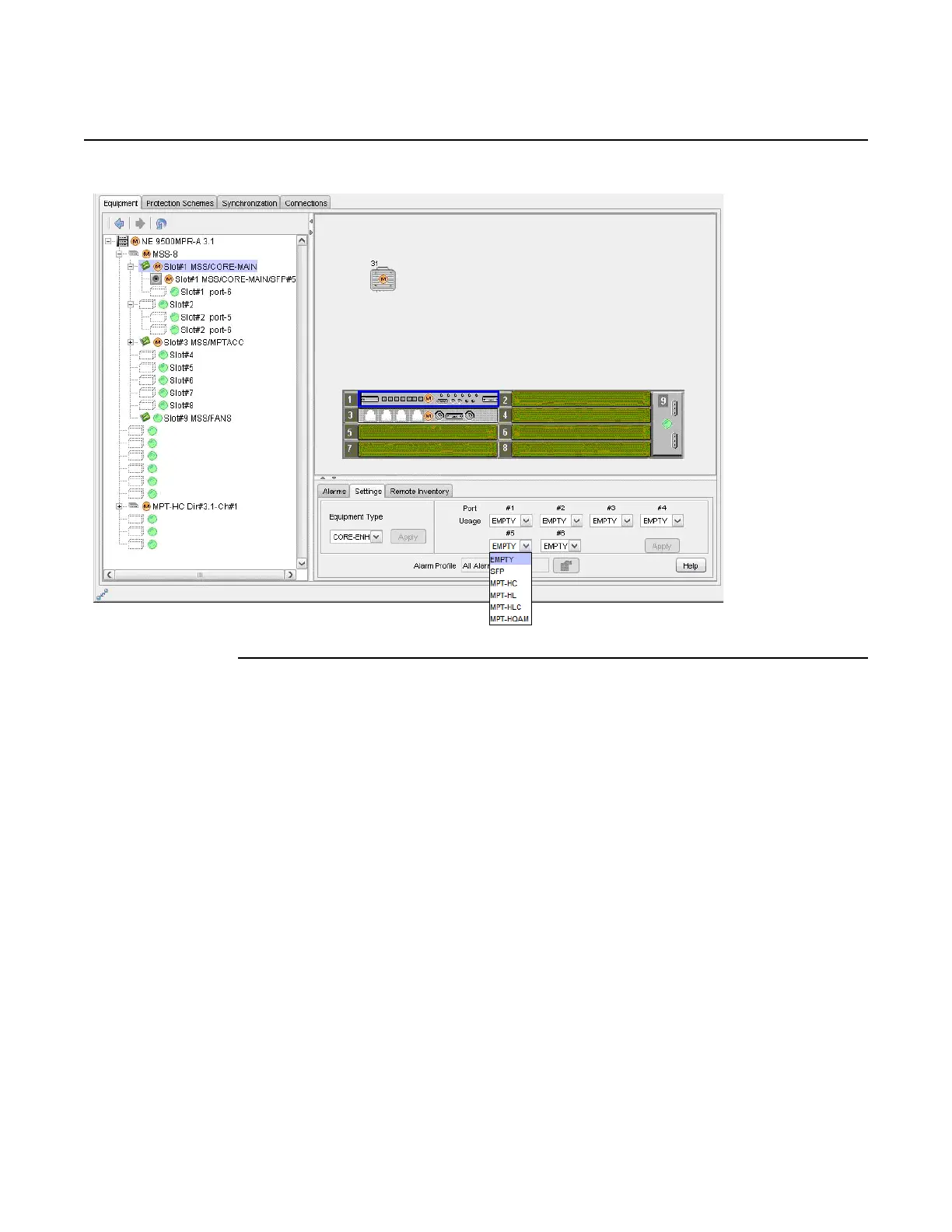

Figure 325 Provision Core-E MPT-HC/XP optical SFP Ethernet port

5. Click Apply.

The Core MPT card will populate selected port #. See Figure 326.

Release 7.0.0 3DB 19286 ACAA Issue 01
