Nokia 9500 MPR - Figure 414 Node J to Node D (Protected): PDH-Ring Cross-Connection on Node D

WebEML User Manual Provision cross connections in a mixed fiber/
microwave Ring
605

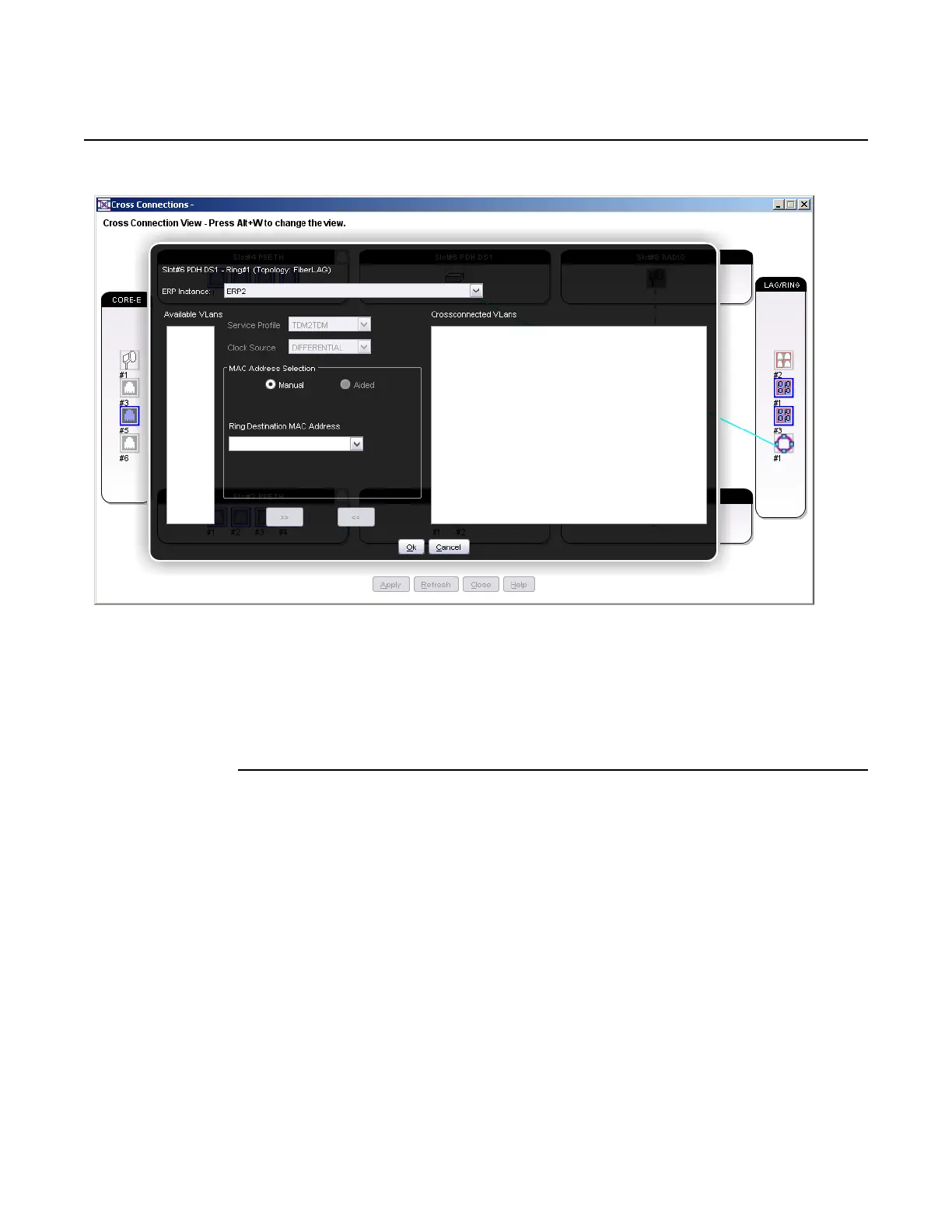

Figure 414 Node J to Node D (protected): PDH-Ring cross-connection on Node D
a. Choose the flow IDs to cross-connect from the Available VLANs list
b. Choose the Service profile: TDM2TDM or TDM2ETH
c. Choose the Clock Source, if the Service profile is TDM2ETH
d. Enter the Ring Destination MAC address: Node A Unicast MAC address
To provision a cross-connection between Node K and Node B
1. One traffic end point belongs to the fiber chain, see Figure 415.
