Provision Ring cross-connections using the
aided cross-connection tool
756
WebEML User Manual
Provision the cross-connections for the nodes in the fiber chain, as outlined in
Provision cross connections in a mixed fiber/microwave Ring. The Aided radio
button is selected in the MAC Address Selection panel. The correct MAC
address is automatically selected, or a list of possible MAC addresses is
provided. Figure 569 through Figure 575 provide examples.

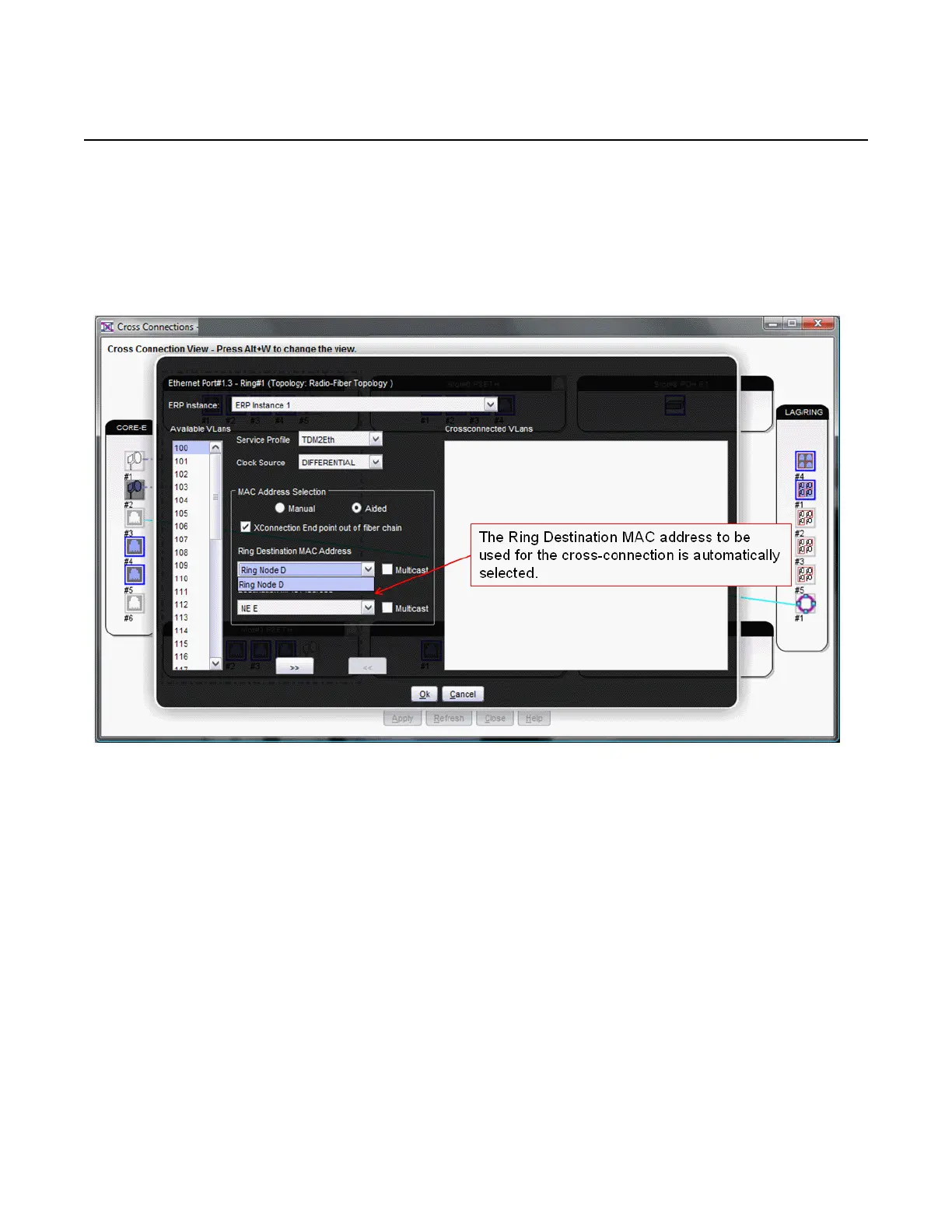

Figure 569 Add&Drop cross-connection: Other end point is outside the fiber chain
Release 7.0.0 3DB 19286 ACAA Issue 01
