OAM Remote Loopback
976
WebEML User Manual

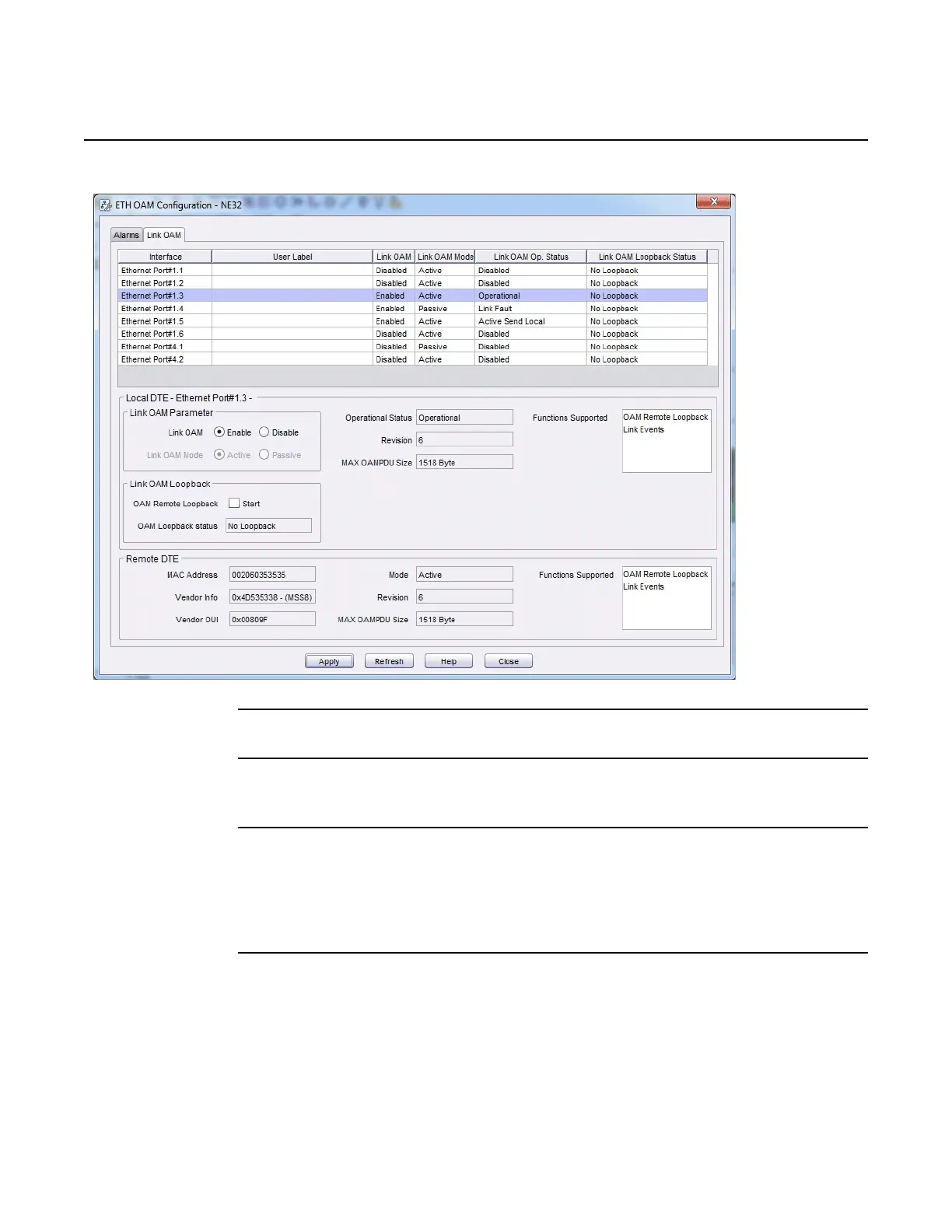

Figure 733 ETH OAM Configuration window with operational link
2. From the list, choose the interface that you need to create the loopback on.
3. In the Link OAM Loopback pane, choose the Start check box in the OAM
Remote Loopback field.
4. Click on the Apply button.
The loopback is enabled. The Link OAM Loopback Status is updated to Remote
Loopback, see Figure 734.
To deactivate OAM Remote Loopback
1. From the Main Menu Bar, select Configuration >ETH OAM Configuration.
The ETH OAM Configuration window opens. See Figure 734.
Release 7.0.0 3DB 19286 ACAA Issue 01
