Nokia 9500 MPR - Figure 351 Disable Easv2

To Next Page

To Previous Page

WebEML User Manual Disable equipment

537

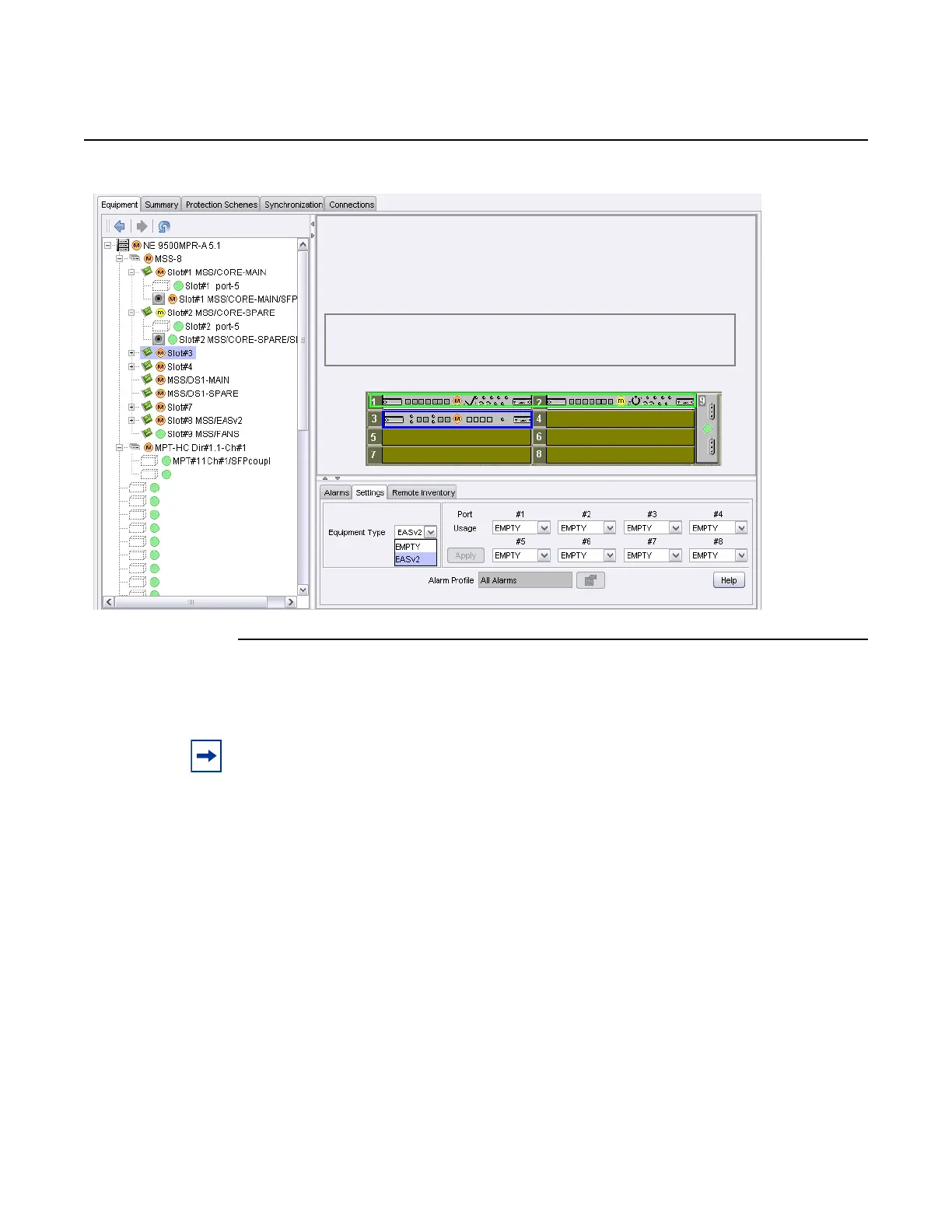

Figure 351 Disable EASv2

4. Click Apply.

The EASv2 card is removed from the selected slot #. See Figure 352.

Note: The EASv2 card will not be disabled if the card has cross-connects, MPT-HL/MPT-

HLC Transceiver cards, and/or equipment ports associated.

Release 7.0.0 3DB 19286 ACAA Issue 01
