Nokia 9500 MPR - Figure 346 Disabled MPT-HL or MPT-HLC Transceiver

To Next Page

To Previous Page

Disable equipment

532

WebEML User Manual

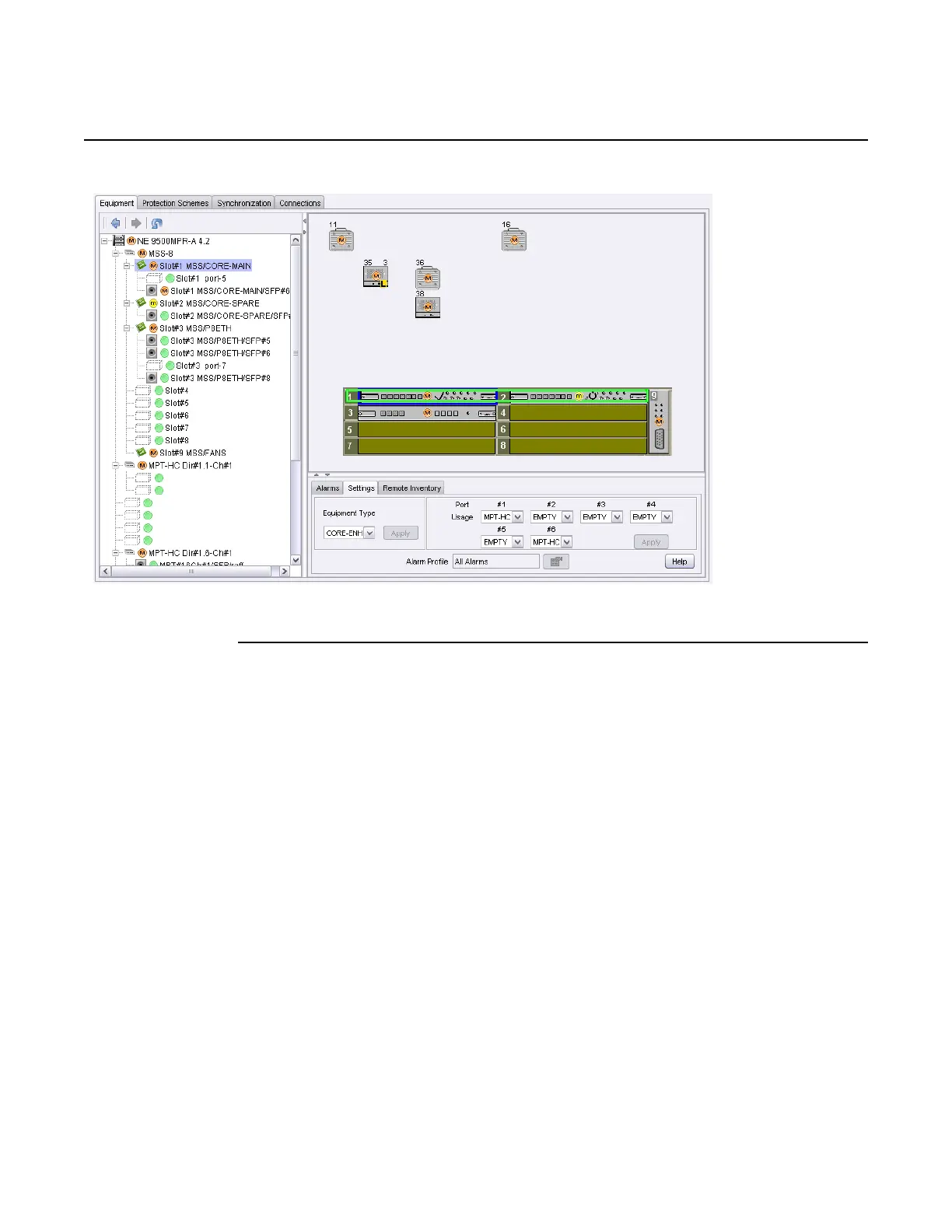

Figure 346 Disabled MPT-HL or MPT-HLC transceiver

To disable a P8ETH card

1. Select MSS-n/Slot# (slot 3 through 8) in the resource tree area where the

P8ETH card is enabled. The selected slot will highlight in blue. This selection

also highlights the selected slot in blue on the graphical representation of the

MSS shelf in the resource list area. See Figure 347.

Release 7.0.0 3DB 19286 ACAA Issue 01
