Provision cross connections in a mixed fiber/
microwave Ring
716
WebEML User Manual

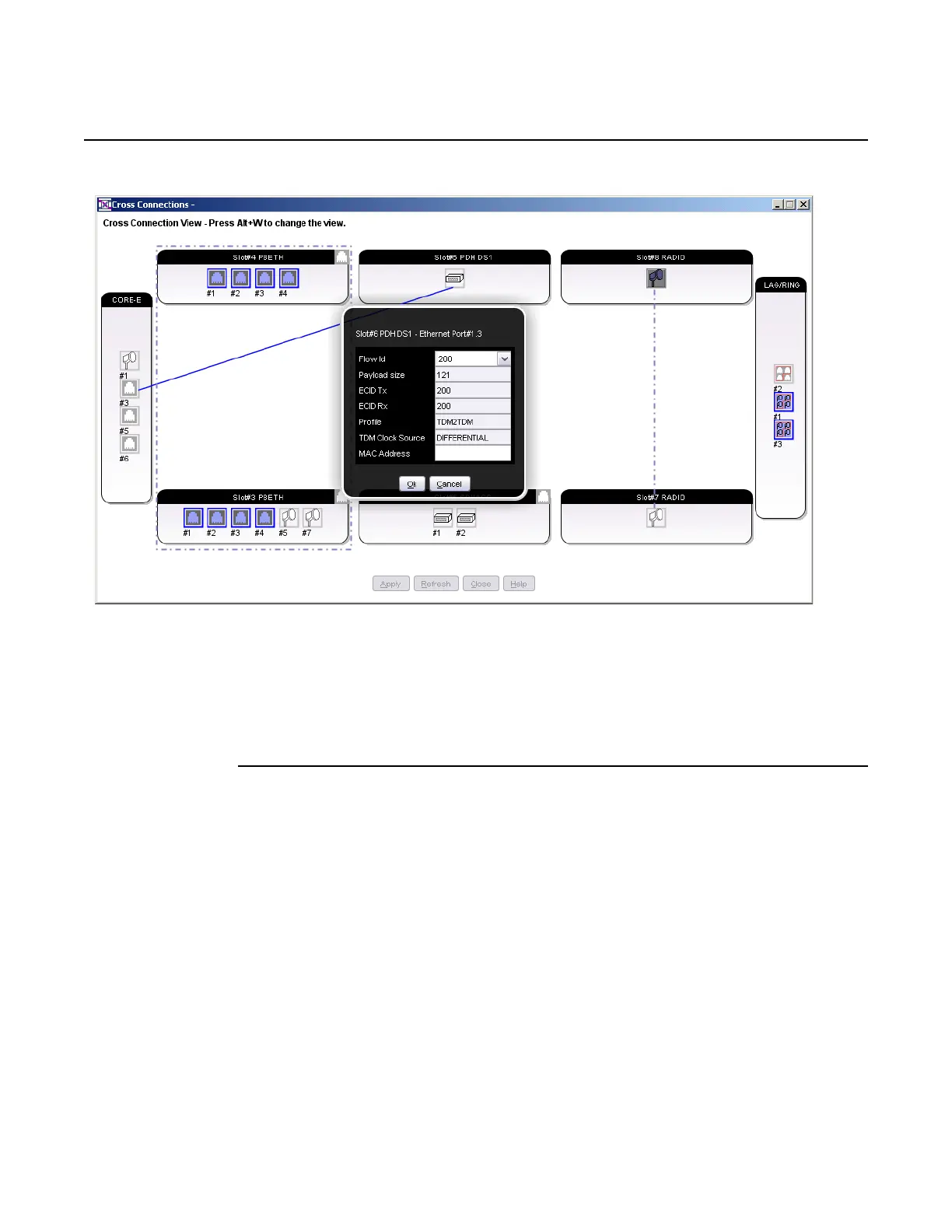

Figure 531 NE F (protected) to Node C (protected): Ethernet-PDH cross-connection on NE F
e. Choose the flow ID from the Flow Id drop-down
f. Configure the payload size, ECID Tx, and ECID Rx parameters
g. Choose the Service profile: TDM2TDM or TDM2ETH
h. Choose the TDM clock source, if the Service profile is TDM2ETH
i. Enter the MAC address: Node C Multicast MAC address
2. Configure an Ethernet-Ring cross-connection on Node B, see Figure 532.
