Nokia 9500 MPR - Figure 365 Enabled MPT-HC ODU on Core-E

To Next Page

To Previous Page

WebEML User Manual Disable equipment

551

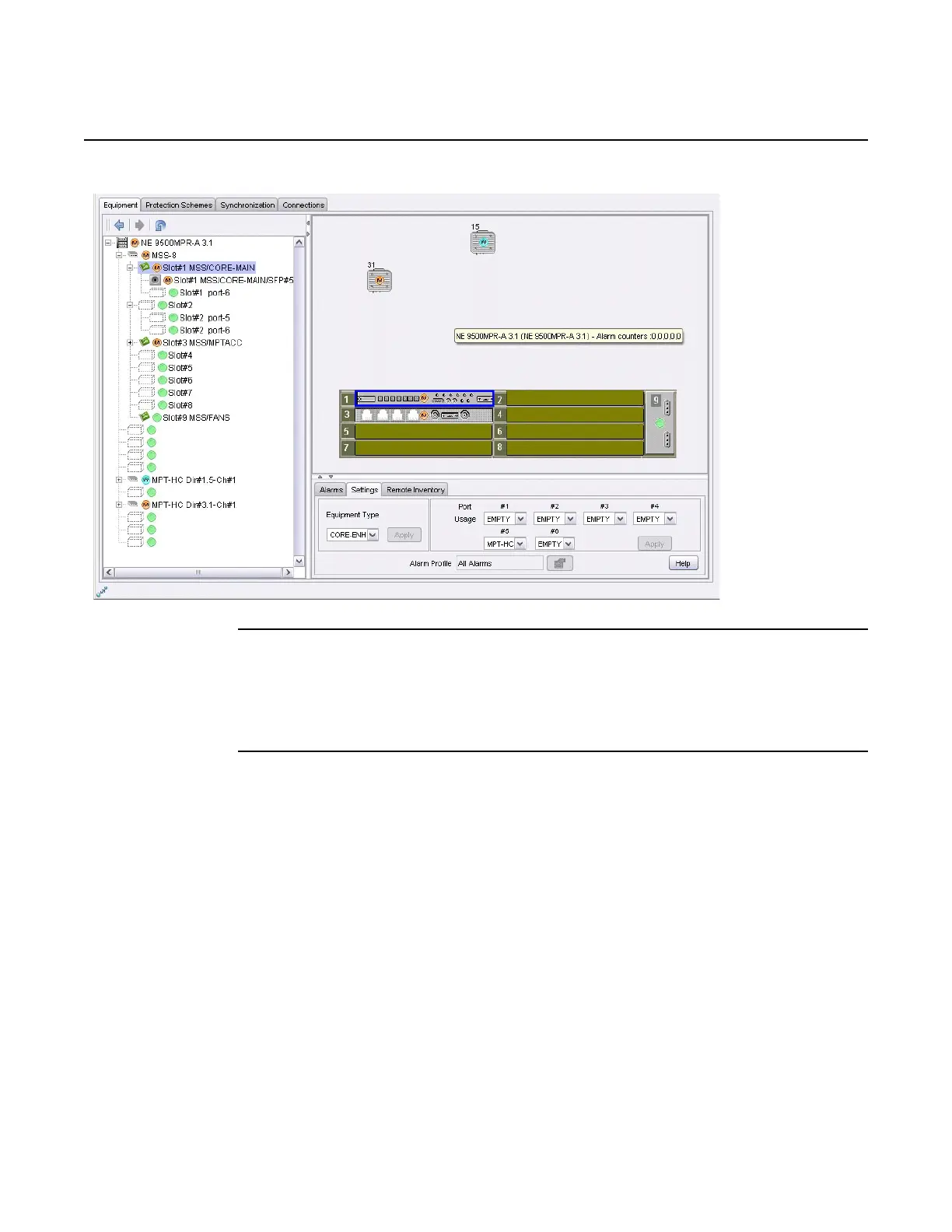

Figure 365 Enabled MPT-HC ODU on Core-E

3. Deprovision MPT-HC/XP/HC-HQAM/XP-HQAM/9558HC connected to

electrical or optical SFP Ethernet port?

a. If electrical Ethernet port, go to step 6.

b. If optical SFP Ethernet port, go to step 4.

4. From the Port # (5-6) Usage drop-down menu, select usage type Empty, see

Figure 366.

Release 7.0.0 3DB 19286 ACAA Issue 01
