Nokia 9500 MPR - Figure 41 TMN In-Band Port Disabled

To Next Page

To Previous Page

Administer In-Band TMN VLAN port

128

WebEML User Manual

6. Click Apply.

Configuration Update window displays.

7. Click OK.

TMN Ethernet interface is disabled. See Figure 41.

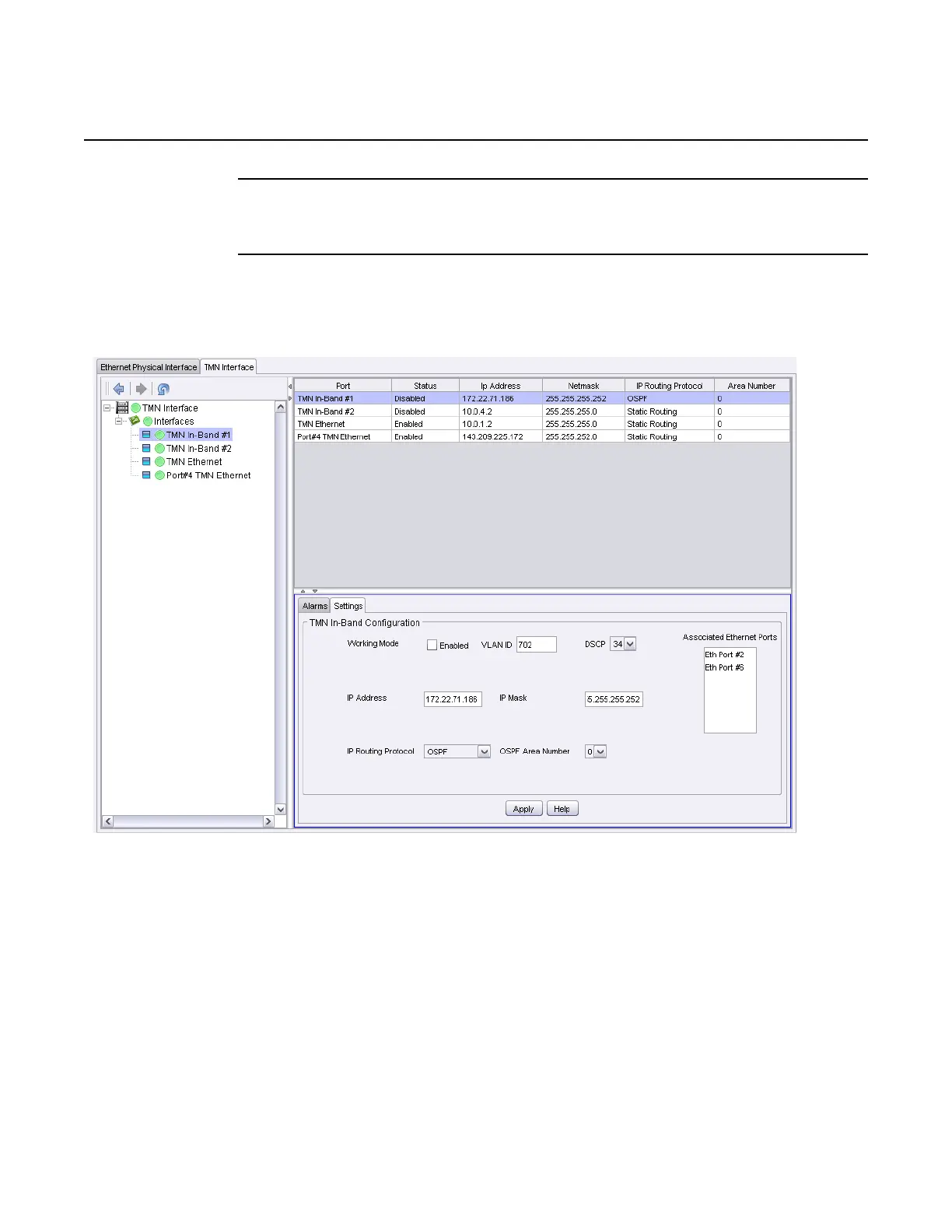

Figure 41 TMN In-band Port Disabled

Release 7.0.0 3DB 19286 ACAA Issue 01
