Nokia 9500 MPR - Figure 642 Provision MPT ODU 1+1 XPIC Association

WebEML User Manual Configure radio parameters
857
e. TX Freq
f. Rx Freq
iii. From the Option drop-down menu, choose gain configuration identical (Std/
XPIC) to the values provisioned for the horizontal radio channel (step 19
iii).
iv. Click Apply.
v. Provision Vertical radio channel XPIC Configuration Polarization to Vertical.
vi. Click Apply.
21. Open XPIC Configuration tool. See Figure 636.
XPIC Configuration tool displays. See Figure 637.
22. Select Horizontal Radio port and drag to draw line to Vertical RADIO port.
XPIC Association pop-up displays. See Figure 642.

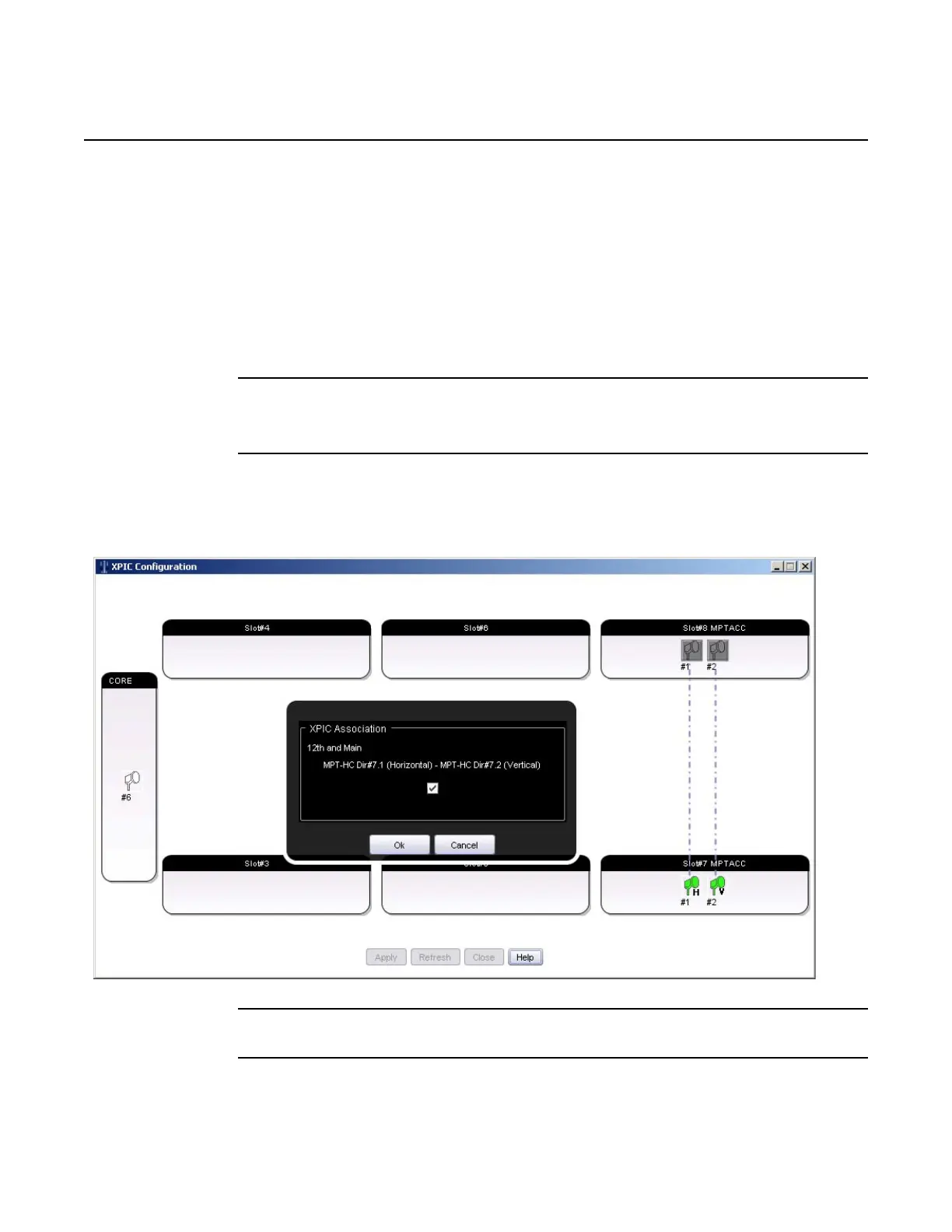

Figure 642 Provision MPT ODU 1+1 XPIC association
23. Click OK.
24. Click Apply.
