Nokia 9500 MPR - Figure 730 SDH Main View, Loopback Tab DS1 Port#07 Selected

WebEML User Manual Line Facing PDH/SDH Tributary Loopback
971

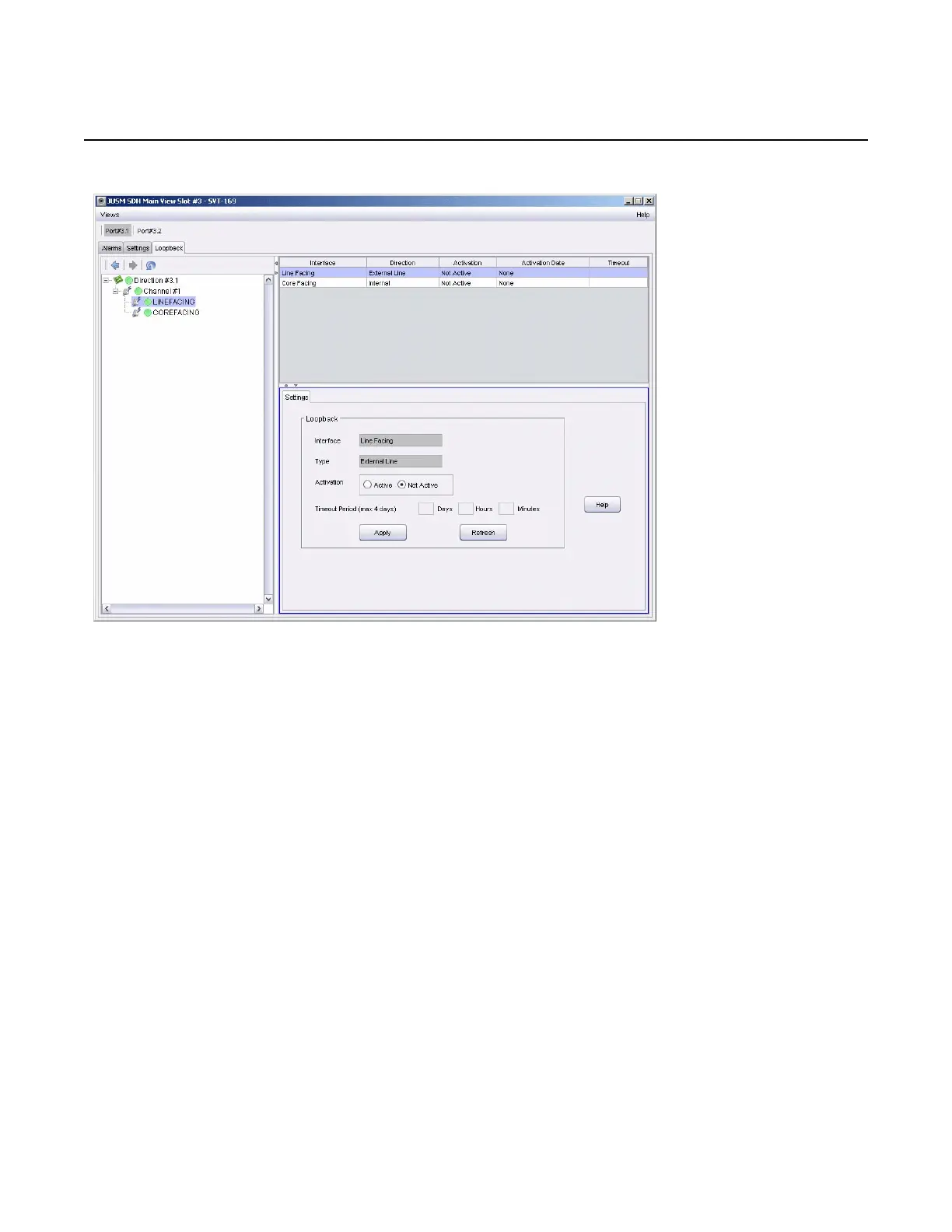

Figure 730 SDH main view, Loopback tab DS1 Port#07 selected
v. Select the Active radio button in the Activation area.
vi. Enter time out period (days, hours, minutes) in the Timeout Period (max 4
days) fields.
vii. Click Apply.
Loopback Setting window opens.
viii. Click Yes.
Line Facing PDH/SDH Tributary Loopback is established (Active). See
Figure 731.
Line Facing PDH/SDH Tributary Loopback is established (Active). For an
example of an active DS1 line facing loopback see Figure 731. For an
example of an active SDH Line facing loopback see Figure 732.
Release 7.0.0 3DB 19286 ACAA Issue 01
