Nokia 9500 MPR - Figure 596 MPT ODU Radio Main View Settings Tab

WebEML User Manual Configure radio parameters
789

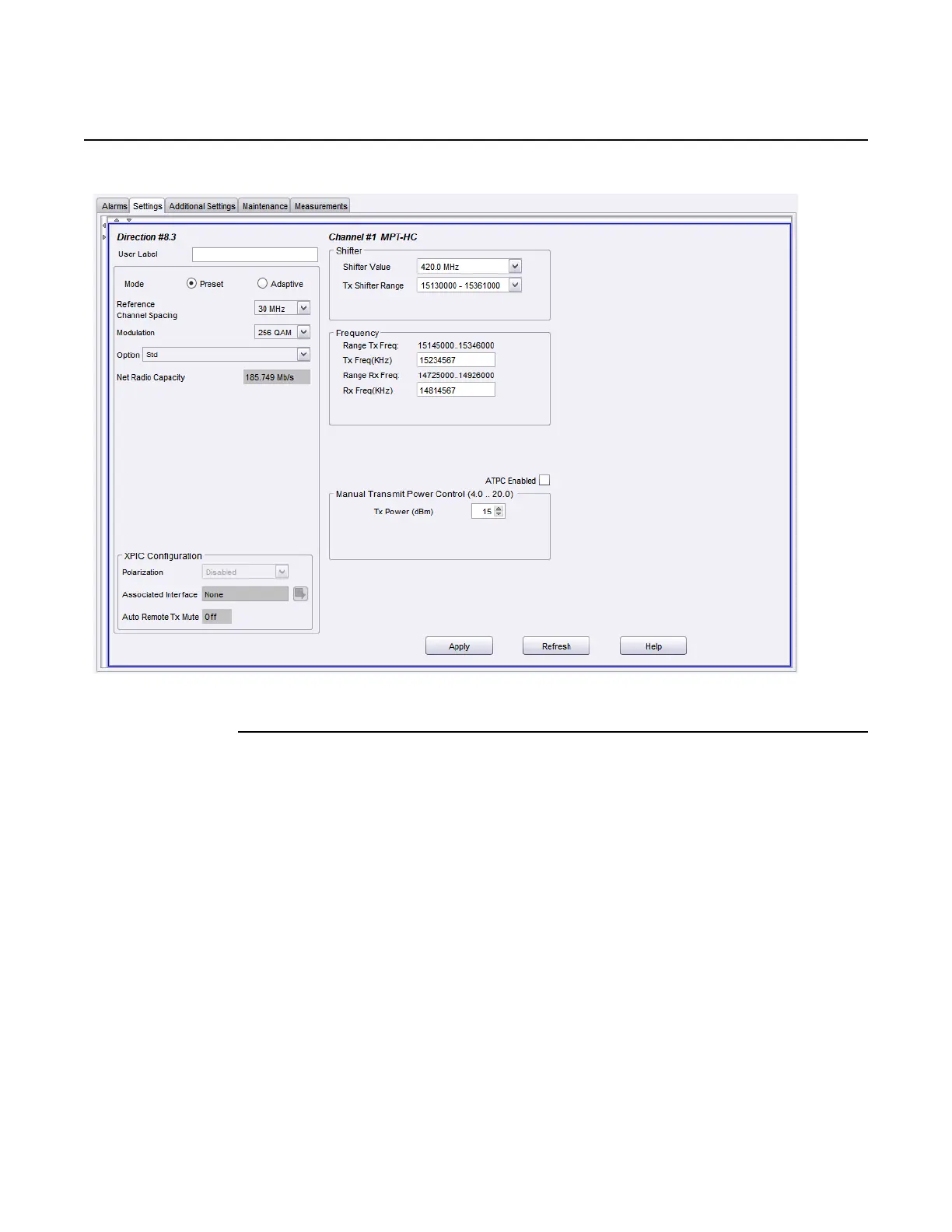

Figure 596 MPT ODU Radio Main View Settings tab
To administer the MPT-HL transceiver
1. Select an action.
a. To Provision the MPT-HL radio protection type, go to step 2.
b. To Provision the MPT-HL radio for fixed modulation, go to step 6.
c. To Provision the MPT-HL radio for adaptive modulation, go to step 9.
d. To Provision the MPT-HL 1+1 spare radio channel, go to step 12.
e. To Provision the MPT-HL manual transmit power level (RTPC), go to
step 15
f. To Provision the spare MPT-HL RTPC, go to step 18.
g. To Provision the MPT-HL Automatic Transmit Power Control (ATPC), go to
step 20.
h. To Provision the spare MPT-HL ATPC, go to step 23
i. To Provision the MPT-HL radio protection scheme, go to step 25.
j. To Provision the MPT-HL link identifier, go to step 32
