Nokia 9500 MPR - Figure 426 Node K to Node B (Protected): Pass-Through Cross-Connection on Node D

Provision cross connections in a mixed fiber/
microwave Ring
616
WebEML User Manual

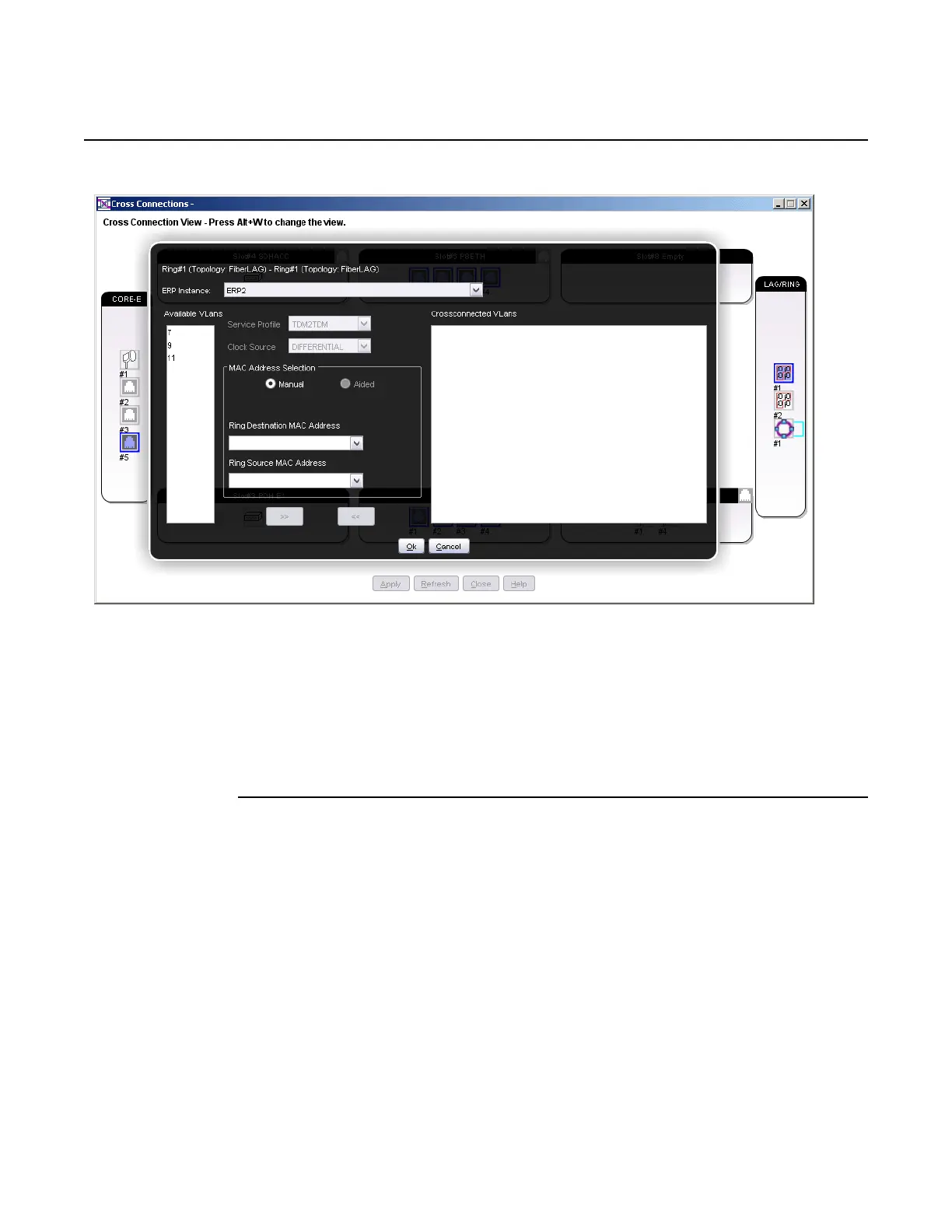

Figure 426 Node K to Node B (protected): pass-through cross-connection on Node D
a. Choose the flow IDs to cross-connect from the Available VLANs list
b. Choose the Service profile: TDM2TDM or TDM2ETH
c. Choose the Clock Source, if the Service profile is TDM2ETH
d. Enter the Ring Destination MAC address: Node B Multicast MAC address
e. Enter the Ring Source MAC address: Node D Unicast MAC address
To provision a cross-connection between Node I and NE G
1. One traffic end point is connected using Ethernet to the fiber chain, see
Figure 427.
