Nokia 9500 MPR - Figure 616 MPT-HLC 1+1 Settings Tab

WebEML User Manual Configure radio parameters
817

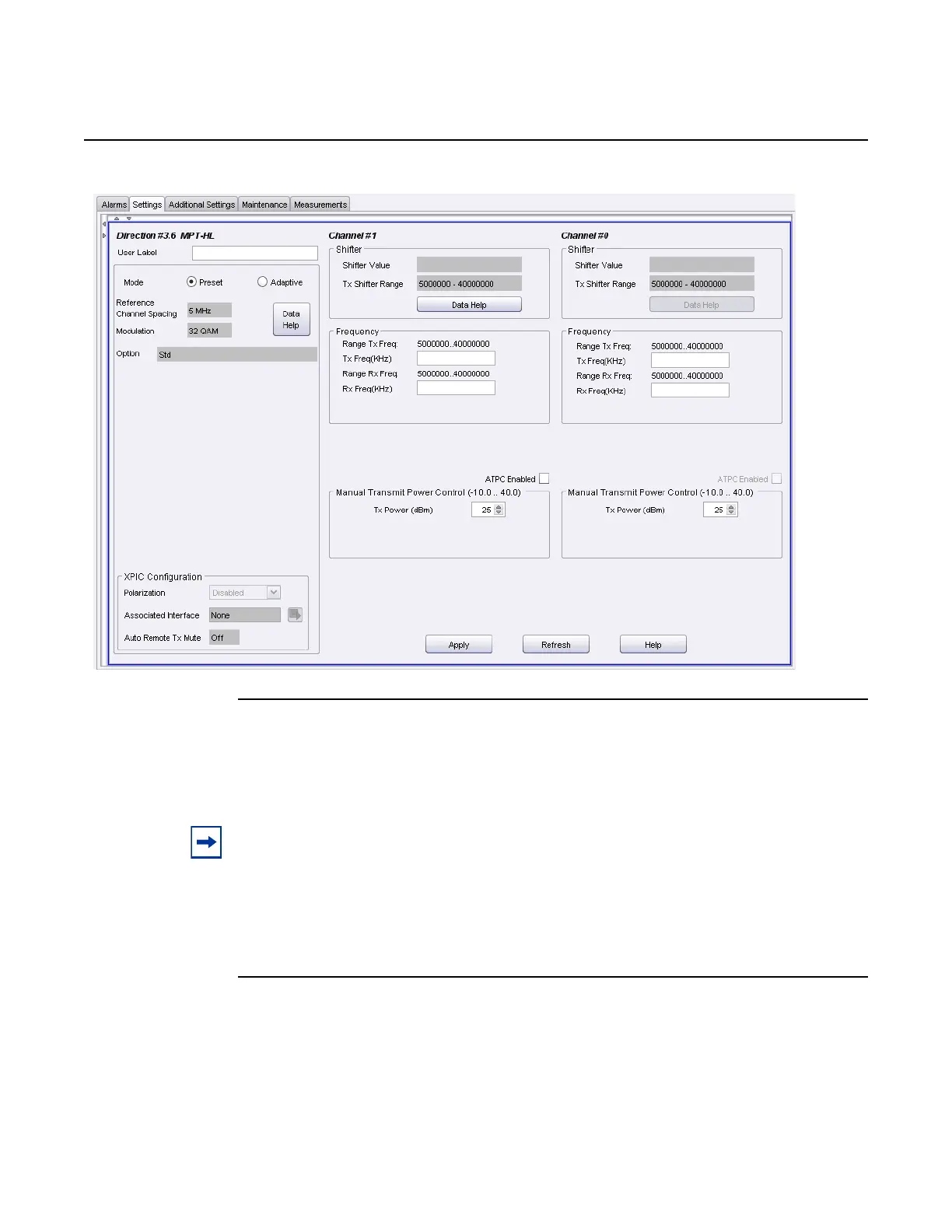

Figure 616 MPT-HLC 1+1 settings tab
36. Provision MPT-HLC 1+1 spare radio channel:
a. Enter the TX Frequency within the allowed range.
b. The Rx Freq (KHz) displays the Rx RF Frequency.
c. Click Apply.
37. Select an action.
a. To Provision the MPT-HLC manual transmit power level (RTPC), go to
step 39.
Note: The Channel #1 Rx Freq (KHz) field displays the Rx RF Frequency and is the result
of the following calculation:
RX Frequency = TX Frequency +/- Shifter Frequency (based on the high or low channel
selected)
